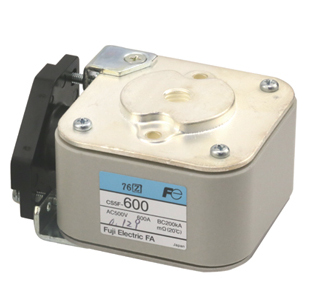

FUJI ELECTRIC CS5F600 Super Rapid Fuse
FUJI ELECTRIC's CS5F series Super Rapid Fuses are designed for robust protection of sensitive electronic components like silicon diodes and thyristors, commonly used in inverters and transformer-rectifiers. Their key feature is a small total I²t value, enabling rapid interruption of abnormal currents and preventing damage to related equipment. The low arc voltage minimizes the risk of influencing other electrical machinery. These fuses are recognized by UL, CSA, and TÜV, ensuring compliance with industry standards and providing reliable performance in various applications.
FUJI ELECTRIC CS5F600 Super Rapid Fuse Specifications:
- Rated Current: 12-1500 A
- Rated Voltage: 550 V
- Peak Arc Voltage: 1550 V
- Max Interrupting I2t: 0.09 - 3600 Amp2×sec.
- Watt Loss: 5.1 - 334 W
- Fuse-link Type: BLC012-1 to CS10F-1500-C
- Interrupting Capacity: 100kA at 550V AC
- Peak Arc Voltage (CS1F): Max. 450V
- Peak Arc Voltage (CS2F): Max. 750V
- Peak Arc Voltage (CS5F): Max. 1000V
- Peak Arc Voltage (CS8F): Max. 2000V
- Peak Arc Voltage (CS10F): Max. 2000V
- Peak Arc Voltage (CS15F): Less than 3000V
- UL Recognized: CR2L/UL, CR2LS/UL, CR6L/UL
- CSA Certificated: CR2LS/UL
- TÜV: CR2LS/UL (10-100A), CR2L/UL (150-350A), CR6L/UL (50-300A)
Buy the CS5F-600 FUJI ELECTRIC Super Rapid Fuse | myMectronic
Purchase the FUJI ELECTRIC CS5F-600 Super Rapid Fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy FUJI ELECTRIC CS5F600?
You can click on the BUY or RFQ button to purchase CS5F600 from an authorized FUJI ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part CS5F600?
You can download the CS5F600 datasheet or visit the FUJI ELECTRIC website for support.
Who is the manufacturer of CS5F600?
FUJI ELECTRIC
