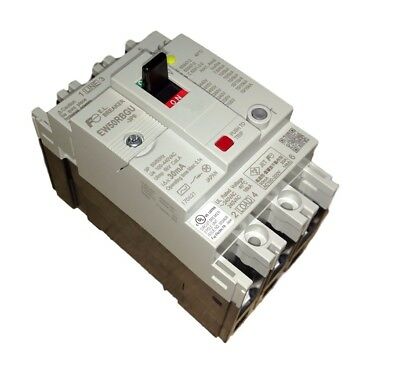

FUJI ELECTRIC EW50RBGU3P020CRRA Molded Case Circuit Breaker
The Fuji Electric EW50RBGU-3P020C-RRA is a high-performance molded case circuit breaker and earth leakage circuit breaker ideal for modern industrial applications. Its compact design, achieved through a small-width structure, allows for downsizing and globalization of machine equipment and control panels. The breaker boasts a high breaking capacity, improved from 14kA to 18kA at 240V AC and 5kA to 7.5kA at 230V AC. Compliant with UL/CSA, IEC, GB, and JIS standards, this breaker offers versatility and reliability for a wide range of applications. The cassette-type internal accessories allow for easy mounting and customization, while the arc commutation breaking technology ensures high-speed arc interruption and enhanced safety.
FUJI ELECTRIC EW50RBGU3P020CRRA Molded Case Circuit Breaker Specifications:
- frame: 50AF
- product_category: RBGU (Global)
- number_of_poles: 3P
- rated_sensitive_current: 30mA
- breaking_capacity_UL489_240VAC: 18kA
- breaking_capacity_JIS_IEC_230VAC: 7.5kA
- rated_current: 30, 40, 50
- standard_installation: IEC 35 mm rails and screw mounting
- auxiliary_switch_alarm_switch: Supported
- dense_side_by_side_mounting: Supported
- supported_circuits: AC and DC
