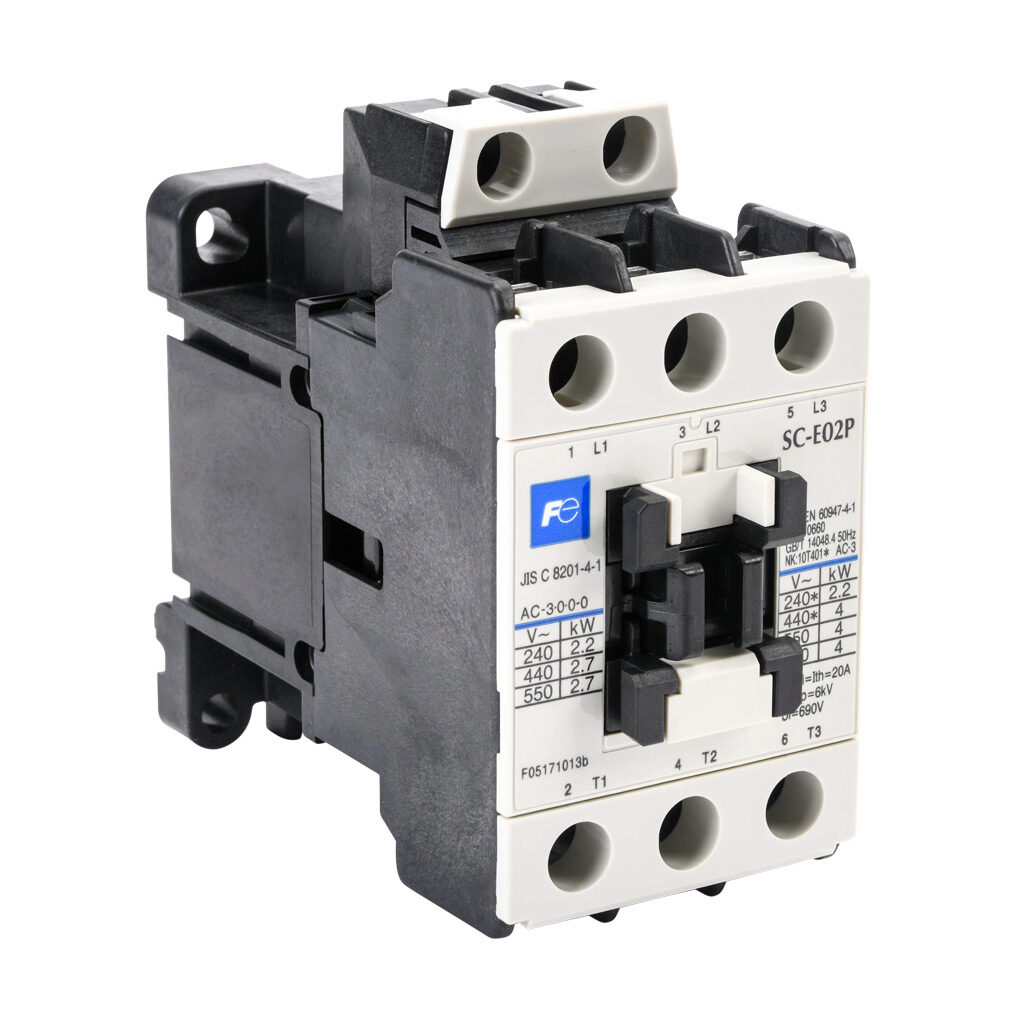

FUJI ELECTRIC SCE02P110VAC Duo Series Contactor
Fuji Electric's SC-E Duo Series contactors are robust and versatile devices designed for controlling electrical power to motors and other loads. These contactors are known for their compact size, ease of wiring, and high operating reliability. They incorporate features like finger-protection terminals to enhance safety and SUPERMAGNET technology to minimize surge suppressor requirements. The SC-E series is suitable for a wide range of industrial applications, including HVAC systems, conveyor systems, and general-purpose motor control.
FUJI ELECTRIC SCE02P110VAC Duo Series Contactor Specifications:
- hp_at_480vac: 5 to 100 hp
- approval_standards: cULus, CSA, CE, JIS, IEC
- width_mm: 43
- pole_main_circuits: 3-pole
- terminal_structure: Box lug terminal
- finger_protection: Finger-protection terminal structure
- supermagnet_technology: SUPERMAGNETTM (AC-input/DC-output)
- ul_listed_file: E42419
- standard_ul: UL 508
- cul_listed_file: E42419
- standard_csa: CSA C 22.2 No.14
- vde_standard: VDE 0660
- jis_standard: JIS C 8201-4-1
- iec_standard: IEC 60947-4-1 / EN 60947-4-1
- ce_compliant: CE compliant
- optional_accessories: Auxiliary contact blocks, Coil surge suppression units
- rated_capacity_hp_3phase: 2 to 25
- rated_capacity_hp_1phase: 1 to 5
- coil_voltage: 110VAC
- rated_insulation_voltage: 690V
- rated_ac3_current: Variable
- rated_ac1_thermal_current: Variable
