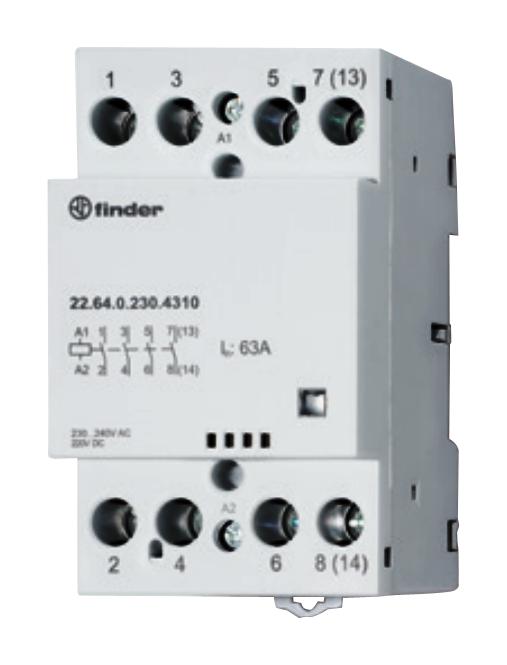

FINDER 226400244610 Modular Contactors
This series features modular contactors rated from 25A to 63A, suitable for industrial applications such as lighting control, pump management, and automation systems. They include options like silent coils with varistor protection, reinforced insulation, and auxiliary modules for quick assembly. The contactors support resistive, motor, and high inrush current loads with contacts made of AgNi or AgSnO, ensuring durability. They are compliant with EN 61095: 2009, conform to fire and smoke standards for railway use, and are designed for 35 mm rail mounting for easy installation.
FINDER 226400244610 Modular Contactors Specifications:
- Rated current: 25A, 40A, 63A
- Contact configuration: 2NO, 1NO+1NC, 4NO, 3NO+1NC, 2NO+2NC
- Rated voltage VAC: 230V, 400V, 440V
- Rated load AC-7a VA: 6250, 16000, 24000
- Rated load AC-15 VA: 1800, 5000, 8000
- Mechanical life: 2-10 million cycles
- Electrical life at rated load: up to 10 million cycles
- Coil voltage: 12V, 24V, 48V, 60V, 110V, 120V, 230V AC/DC
- Coil power: 2W, 5W, 22W
- Operating temperature: -20°C to +50°C
- Protection category: IP20
- Compliance: EN 61095: 2009, EN 60947-4-1: 2009
- Insulation: Reinforced between coil and contacts, basic between contacts
- Contact material: AgNi, AgSnO
- Mounting: 35 mm rail (EN 60715)
- Rated impulse voltage: 4-6 kV
- Short circuit protection: 63-80A fuse
- Wire connection: Solid and stranded cables up to 25mm²
- Vibration resistance: 3-4g
- Shock resistance: 10-15g
Buy the FINDER 226400244610 – Reliable Modular Contactors for Industrial Applications
Purchase the FINDER Series 226400244610 modular contactors online today for reliable, durable, and easy-to-install switching solutions. Perfect for industrial lighting, pump systems, and automation controls, these contactors feature silent coils with varistor protection, reinforced insulation, and quick-assembly auxiliary modules. Designed for 35 mm rail mounting, they support resistive, motor, and high inrush loads with contact materials like AgNi and AgSnO. Ensure your projects operate smoothly with these high-quality, compliant industrial control components available for online purchase.
Order your FINDER Series 226400244610 modular contactor today and give your projects the dependable quality they deserve, ensuring seamless automation and lighting control.
Frequently Asked Questions
Where can I buy FINDER 226400244610?
You can click on the BUY or RFQ button to purchase 226400244610 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 226400244610?
You can download the 226400244610 datasheet or visit the FINDER website for support.
Who is the manufacturer of 226400244610?
FINDER
