FINDER 385101250060 Relay Interface Module

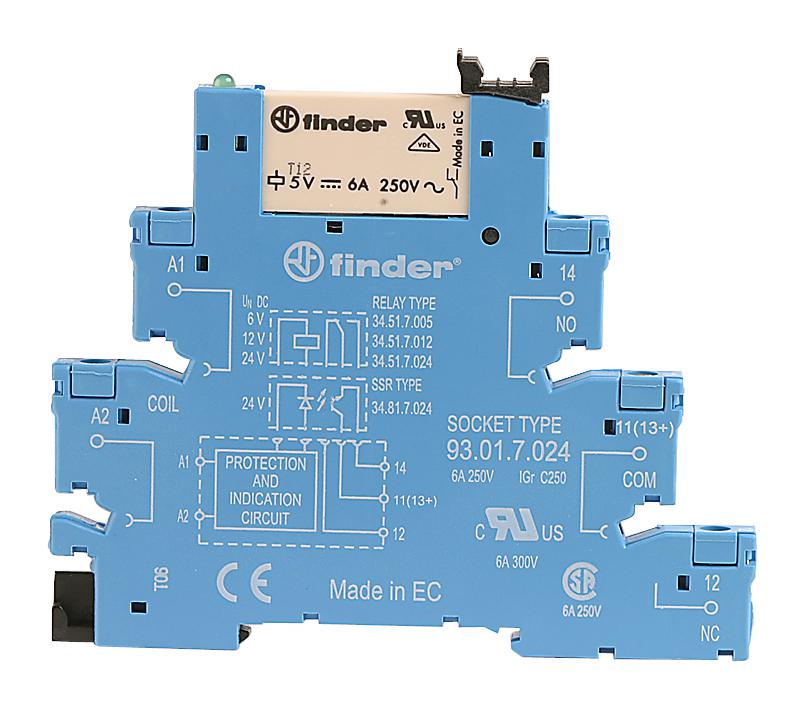

The Relay Interface Module with part number 38.51.0.125.0060 features an AC/DC coil and is part of the 38.51 series. It includes a single-pole, double-throw (SPDT) electromechanical relay with screw terminals, measuring 6.2mm in width. The module is equipped with an integrated coil indicator and protection circuitry. It allows for instant relay ejection with a plastic retaining clip. Designed for industrial applications, it is ideal for PLC and electronic systems. The module has an IP20 protection rating and operates within a temperature range of -40°C to 70°C.
FINDER 385101250060 Relay Interface Module Specifications:
- Width: 6.2mm
- Type: Single-pole, double-throw (SPDT) electromechanical relay
- Coil voltage: AC/DC (specifically includes 110...125V AC/DC)
- Protection rating: IP20
- Operating temperature: -40°C to 70°C
- Mounting: 35 mm rail (EN 60715)
- Relay current rating: 6A
- Integrated coil indication and protection circuit
- Instant relay ejection with plastic retaining clip
- Terminal type: Screw terminals
- Voltage range: 94-138V AC/DC
- Dielectric strength: 1000 VAC
- Electrical life: Up to 10^8 cycles
- Mechanical life: 10^8 cycles
- Operating time: 5 ms (operate), 6 ms (release)
Buy the Buy Finder 38 Series Relay Interface Module Part Number 385101250060 Online
Enhance your automation setup with the Finder Relay Interface Module from the 38 series. Featuring a compact 6.2mm width, it supports single-pole, double-throw relays with AC/DC coils. Easy to mount on a 35 mm rail, it provides IP20 protection for industrial environments. The module includes integral coil indication, protection circuitry, and instant relay ejection. Perfect for PLC systems and electrical control panels, ensuring fast, reliable switching with long electrical life and high dielectric strength, suitable for temperatures from -40°C to 70°C.
Buy Finder 38 series relay interface module part number 385101250060 now and experience reliable switching performance suitable for industrial PLC and automation systems.
Frequently Asked Questions
Where can I buy FINDER 385101250060?
You can click on the BUY or RFQ button to purchase 385101250060 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 385101250060?
You can download the 385101250060 datasheet or visit the FINDER website for support.
Who is the manufacturer of 385101250060?
FINDER
