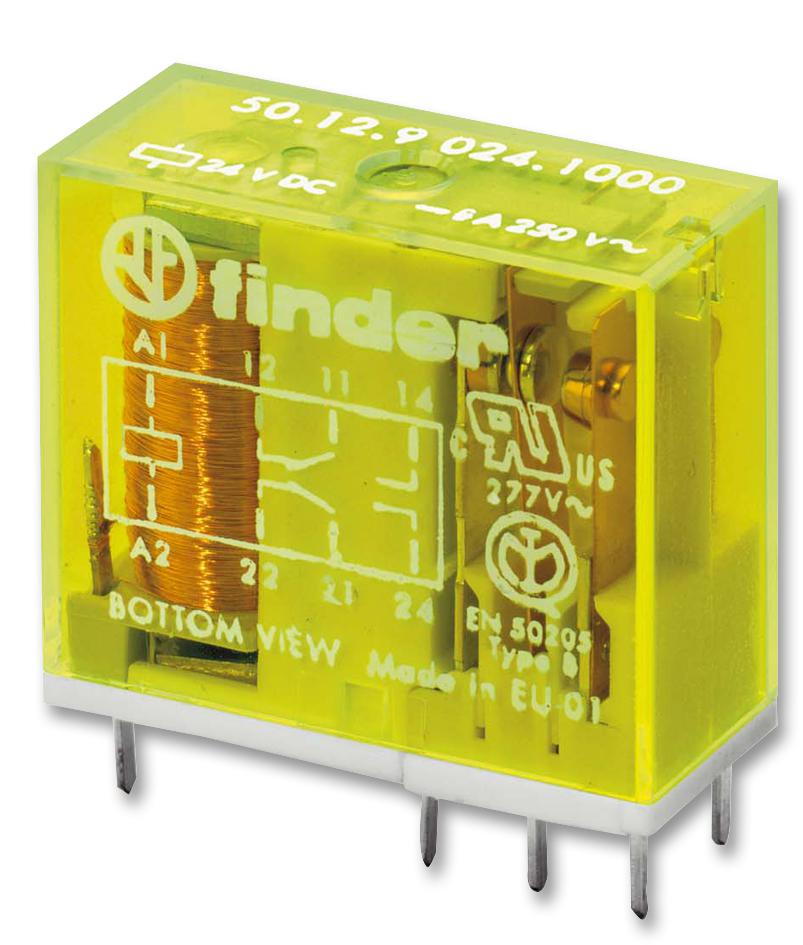

FINDER 501290121000 PCB Relay
This PCB relay features forcibly guided contacts compliant with EN 50205 type B, providing high physical separation, cadmium-free contact materials, and flux-proof design. It supports medium-duty switching, rated at 8A with 2 poles, ideal for safety-critical applications and low-level switching. The relay offers a 6 kV isolation between coil and contacts, robust dielectric strength, and a compact 5mm pinning for PCB mounting. Its versatile coil voltages and construction make it suitable for various industrial control and automation systems, ensuring reliable performance in demanding environments.
FINDER 501290121000 PCB Relay Specifications:
- Contact Configuration: 2 CO (DPDT)
- Rated Current: 8A
- Rated Voltage: 250/400 VAC
- Maximum Switching Voltage: 250/400 VAC
- Dielectric Strength (Open Contacts): 1500 VAC
- Coil Voltages: 5-6V, 12V, 24V, 48V, 60V, 110V, 125V DC
- Coil Power Consumption: 0.7 VA at 24V
- Insulation Between Coil and Contacts: 6 kV
- Insulation Between Contacts: Basic, 4-6 kV impulse
- Environmental Protection: RTI, complies with EN 61810-1
- Operating Temperature Range: -40°C to +70°C
- Mechanical Life: 10^8 cycles
- Electrical Life (Rated Load): 10^7 cycles
- Operate/Release Time: 10/4 ms
- Vibration Resistance: 20/6 g (NO/NC)
- Shock Resistance: 20/5 g (NO/NC)
- Dimensions: PCB pinning, 5 mm pitch, compact design
Buy the Buy Indernet PCB Relay Part Number 501290121000 Online
Order the Indernet PCB relay today for dependable safety-critical switching solutions. With 8A rated current, high dielectric strength, and PCB mounting, it is perfect for industrial control, automation, and safety applications. Its compact design and cadmium-free contacts ensure environmentally friendly operation and reliable performance in various environments. Whether for automation panels or safety systems, this relay offers long-lasting durability, high insulation, and versatile coil voltages—making it an essential component for engineers and automation specialists seeking quality and reliability.
Get Indernet 501290121000 today—designed for safety, high dielectric strength, and reliable switching in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 501290121000?
You can click on the BUY or RFQ button to purchase 501290121000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 501290121000?
You can download the 501290121000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 501290121000?
FINDER
