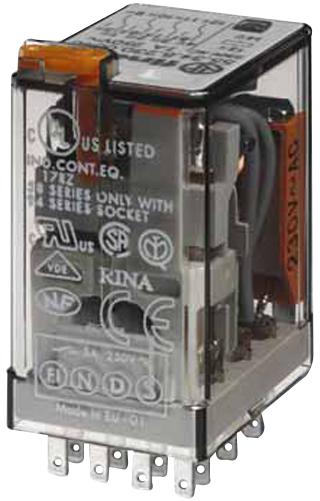

FINDER 553480240050 General Purpose Relay
The relay features a plug-in mount design suitable for general-purpose switching with AC coil operation. It is part of the 55 series and equipped with 4-pole, double-throw (4PDT) cadmium-free AgNi contacts. The relay includes a lockable test button with an LED indicator for easy testing and status monitoring. Compatible with 94-series sockets and protected by a European patent, it offers coil EMC suppression, dust-proof RT I standard protection, and an operating temperature range from -40°C to 85°C. Ideal for industrial applications.
FINDER 553480240050 General Purpose Relay Specifications:
- Contact configuration: 4CO (PDT)
- Rated current/Peak current: 7A/75A
- Rated voltage/Max switching voltage: 250V AC / 250V AC
- Rated load AC: 1750 VA
- Coil voltage range: 6V to 240V AC/DC
- Coil resistance: varies by voltage (e.g., 6V ≈ 48Ω, 12V ≈ 96Ω, 24V ≈ 19.2Ω, 110V ≈ 88Ω, 240V ≈ 192Ω)
- Mechanical life: 20 million cycles
- Electrical life at rated load: 150,000 cycles
- Insulation: 4kV between coil and contacts
- Dielectric strength: 2000V
- Operating temperature: -40°C to 85°C
- Protection category: RT I
- Ambient humidity resistance: standard compliance
- Mounting: Plug-in socket for PCB or DIN rail (EN 60715)
- Approval standards: CE, UL
Buy the Buy Finder Series55 General Purpose Relay Part Number 553480240050 Online
Discover the convenient online purchase of the Finder Series55 relay, featuring a 4-pole configuration, cadmium-free contacts, and a lockable test button with LED. Designed for extensive industrial applications, this relay offers fast switching, reliable operation, and excellent voltage ratings up to 250V AC. Its robust construction endures temperatures from -40°C to 85°C, making it suitable for demanding environments. Equipped with EMC suppression modules, socket compatibility, and compliance with CE and UL standards, it ensures optimal performance for your automation needs.
Order your Finder Series55 553480240050 relay today and benefit from reliable switching, easy testing with LED indicators, and high durability for industrial projects.
Frequently Asked Questions
Where can I buy FINDER 553480240050?
You can click on the BUY or RFQ button to purchase 553480240050 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 553480240050?
You can download the 553480240050 datasheet or visit the FINDER website for support.
Who is the manufacturer of 553480240050?
FINDER
