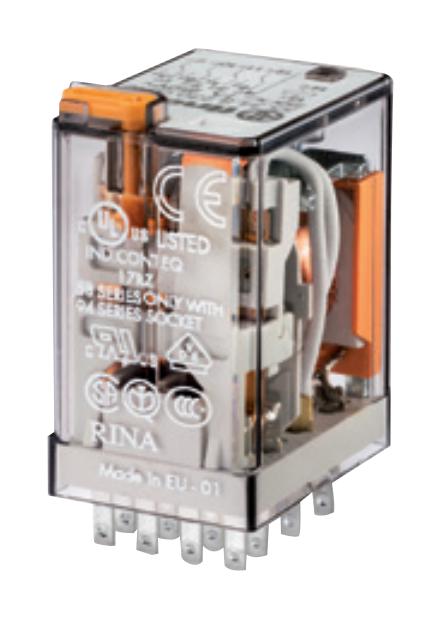

FINDER 553482300054 Industrial Power Relay
The product is a versatile industrial relay system designed for general purpose applications with a current rating of 7-10A. It supports multiple mounting options including PCB, panel, and rail mount, and features cadmium-free contacts with various configurations such as DPDT and 4PDT. Suitable for controlling electric power, automation of shutters, shipyard systems, and lighting, it guarantees high dielectric strength, IP 20 protection, and robust operation over a temperature range of -40°C to +70°C. The relay includes accessories like jumper links, retaining clips, and marker tags for easy installation and maintenance.
FINDER 553482300054 Industrial Power Relay Specifications:
- Rated values: 10A-250V
- Dielectric strength: 2kVAC
- Protection category: IP 20
- Ambient temperature: -40°C to +70°C
- Wire strip length: 8-10 mm
- Max wire size: 2x1.5 mm² (stranded), 2x2.5 mm² (solid)
- Contact configuration options: 2CO, 3CO, 4CO
- Rated load: 500 VA (AC15, 230 V), 2500 VA (AC), 0.37 kW motor rating
- Mechanical life: 20 million cycles
- Electrical life: 200,000 cycles at rated load
- Operating voltage: 6V to 240V AC/DC depending on coil code
- Screw torque: 0.5 Nm
- Environmental resistance: Vibration resistant, shock resistant
Buy the Buy FINDER General Purpose Relay Part Number 553482300054 Online
Order the FINDER industrial power relay with part number 553482300054 online today. This high-performance relay offers a switching capacity of up to 10A at 250V, with robust contacts made from cadmium-free materials. Suitable for automation, power control, and lighting systems, it features IP 20 protection, multiple mounting options, and a wide temperature range of -40°C to +70°C. Easy to install with accessories like jumper links and retaining clips, ensuring secure connections and simplified maintenance for industrial environments.
Get FINDER relay 553482300054 today—designed for reliable power switching and industrial automation with long-lasting durability.
Frequently Asked Questions
Where can I buy FINDER 553482300054?
You can click on the BUY or RFQ button to purchase 553482300054 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 553482300054?
You can download the 553482300054 datasheet or visit the FINDER website for support.
Who is the manufacturer of 553482300054?
FINDER
