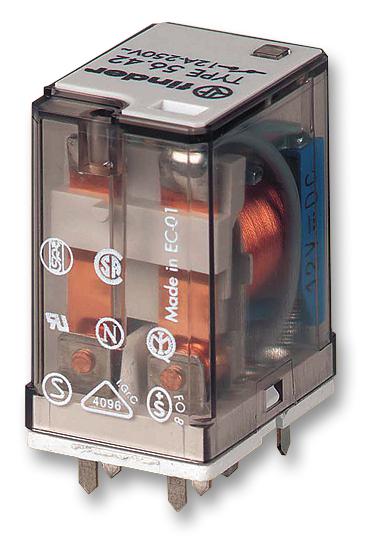

FINDER 564290120000 Power Relay
The 56 Series miniature power relays are designed for reliable switching of loads up to 12 A, available in 2 and 4-pole configurations. They feature plug-in and PCB mount options, with AC and DC coil versions, cadmium-free contacts, and coil EMC suppression. The relays include lockable test buttons, mechanical flag indicators, and optional accesso ries such as flange and rail mounts. Suitable for automation and control applications, these relays offer high dielectric strength, environmental protection, and various contact materials, ensuring versatile and dependable performance in industrial systems.
FINDER 564290120000 Power Relay Specifications:
- Contact configuration: 2 CO (DPDT), 4 CO (4PDT), 2 NO (DPST-NO) with > 1.5 mm gap
- Rated current: 12 A; Max peak current: 20 A
- Rated voltage: 250/400 VAC; Earthing load rating: 3000 VA
- Switching voltage: 250/400 VAC; Resistance: 132-4700 ohms depending on coil voltage
- Coil voltages: 6, 12, 24, 48, 60, 110, 125, 220, 240, 400 V AC/DC
- Coil power: 15 VA (AC), approx. 1-2 W; Operating temperature: -40°C to +70°C
- Insulation: Basic; Dielectric strength: 2500 VAC; Protection category: IP20
- Mechanical life: 20 million cycles; Electrical life: 100 million cycles at rated load
- Operating time: 8-10 ms; Release time: 3-4 ms
- Ambient humidity: Up to 70%; Environmental protection: RTI, RTIl (wash tight option available)
Buy the Finder Series 56 Power Relay: 564290120000
Purchase your Finder Series 56 Power Relay 564290120000 online today for reliable load switching up to 12 A, featuring various contact configurations and coil types. This relay is suitable for automation, control, and industrial applications, offering high dielectric strength, environmental protection, and versatile mounting options. Its durable contacts, electromagnet design, and safety features ensure long-term operation and dependable performance in demanding environments. Enhance your systems by ordering this high-quality relay with confidence from trusted online distributors now.
Order your Finder Series 56 Power Relay 564290120000 today and give your industrial systems dependable switching performance.
