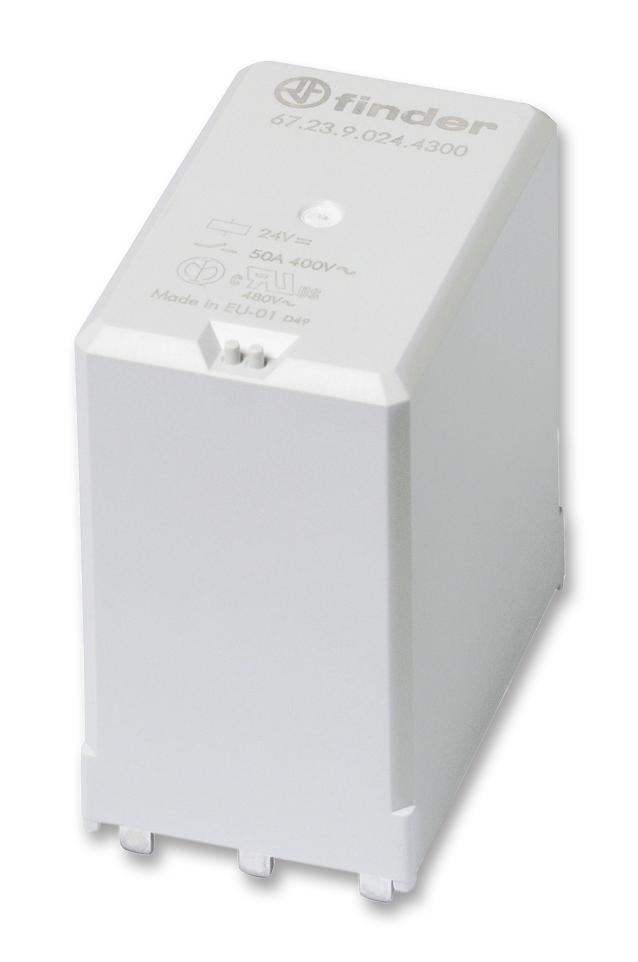

FINDER 672390244300 Photovoltaic Power Relay
This 67 series power relay is designed for photovoltaic inverters, featuring 2 or 3 pole options with NO double break contacts and a 3 mm contact gap. It operates reliably up to 85°C with energy-saving coils consuming only 170 mW, and meets strict standards such as EN 60335-1, VDE, and UL. The relay has reinforced insulation, cadmium-free contacts made of AgNiversion or AgSnO, and supports high switching voltages up to 690V AC. Suitable for demanding applications including solar power systems and motor control, ensuring durability and safety.
FINDER 672390244300 Photovoltaic Power Relay Specifications:
- Contact configuration: 2NO (DPST-NO), 3NO (3PST-NO)
- Contact gap: 3 mm or 5.2 mm according to model
- Rated current: 50 A, Max peak: 150 A for 5 ms
- Maximum switching voltage: 690 VAC, 400 VAC rated
- Rated load: 20000 VA AC1/AC7a per pole, 2300 VA AC1S at 230 VAC
- Motor ratings: 22 kW for single-phase 230 V, similar for three-phase
- Breaking capacity DC1: 50 A at 24/110/220 V
- Coil nominal voltages: 5, 6, 9, 12, 24, 48, 60, 110 V DC
- Holding power: 0.17 W, Drop-out voltage: 0.05 Ux/DC
- Mechanical life: 10^8 cycles, Electric life: 30×10^6 cycles
- Ambient temperature: -40°C to +85°C depending on model and operation mode
- Insulation: Reinforced, pollution degree 3, dielectric strength ≥4000 VAC
- Standards: EN 61810-1, EN 60335-1, UL, VDE compliant
Buy the Finder Series 67 Photovoltaic Relay: 672390244300
Explore the Finder Series 67 photovoltaic relay, engineered for solar inverters and motor control. Features include high switching capacity, energy-efficient coils, reinforced insulation, and compliance with international standards. Suitable for outdoor and demanding environments up to 85°C, it supports high AC and DC voltages with cadmium-free contacts. Ideal for installations that require durability, safety, and energy savings, ensuring your systems operate smoothly with reliable switching and long service life. Purchase online today to enhance your energy projects with trusted reliability.
Order your Finder Series 67 photovoltaic relay today and ensure reliable, high-performance switching for your solar and motor control projects.
