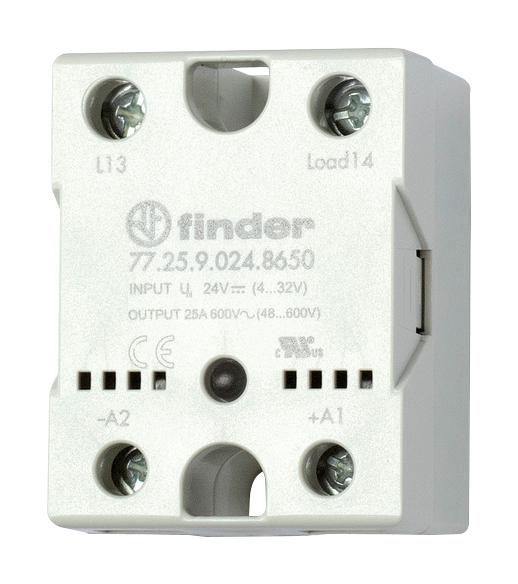

FINDER 772590248650 Industrial Solid State Relay
This modular solid-state relay is designed for industrial automation, controlling high-current loads up to 50A with zero-crossing or random switch-on options. Suitable for heater control, motor, and electromagnet operation, it features high switching speed, silent operation, and efficient thermal management with heat sinks. Compatible with 24V DC or 230V AC inputs, it offers robust insulation, long electrical life cycles, and proven reliability for demanding industrial environments. Mountable on 35mm rails, it ensures safe and efficient load switching with low control power requirements.
FINDER 772590248650 Industrial Solid State Relay Specifications:
- Rated current: 25A/40A/50A
- Rated voltage: 230V AC, 600V AC
- Switching voltage range: 21.6-280V AC for 25/40A, 43.2-660V AC for 50A
- Peak off-state voltage: 600-1200V
- Insulation: 4-6 kV between input and output
- Input voltage: 24V DC/AC or 230V AC, operating range 16-32V or 90-280V respectively
- Control power: 0.4-0.6 VA
- Operate/release times: 10-40 ms depending on model
- Ambient temperature: -20°C to +80°C
- Protection category: IP 20
- Mounting: 35mm DIN rail or panel mounting with heatsinks
- Electrical life cycles: 10^8
- Approval: CE, UL, and others as applicable
Buy the Finder 772590248650 – Reliable Industrial Solid State Relay for Automation and Load Control
Order the Finder 772590248650 modular solid-state relay online today and enhance your automation system with high-current, silent switch operation, robust insulation, and easy DIN rail mounting. Perfect for controlling motors, heaters, and electromagnets in demanding industrial environments. Take advantage of fast delivery and professional customer support, ensuring your project remains on schedule. Trust Finder’s proven reliability for long-lasting and efficient load switching, suitable for even the most critical industrial applications.
Buy Finder 772590248650 now and experience unmatched reliability and performance for industrial automation and high-current switching needs.
