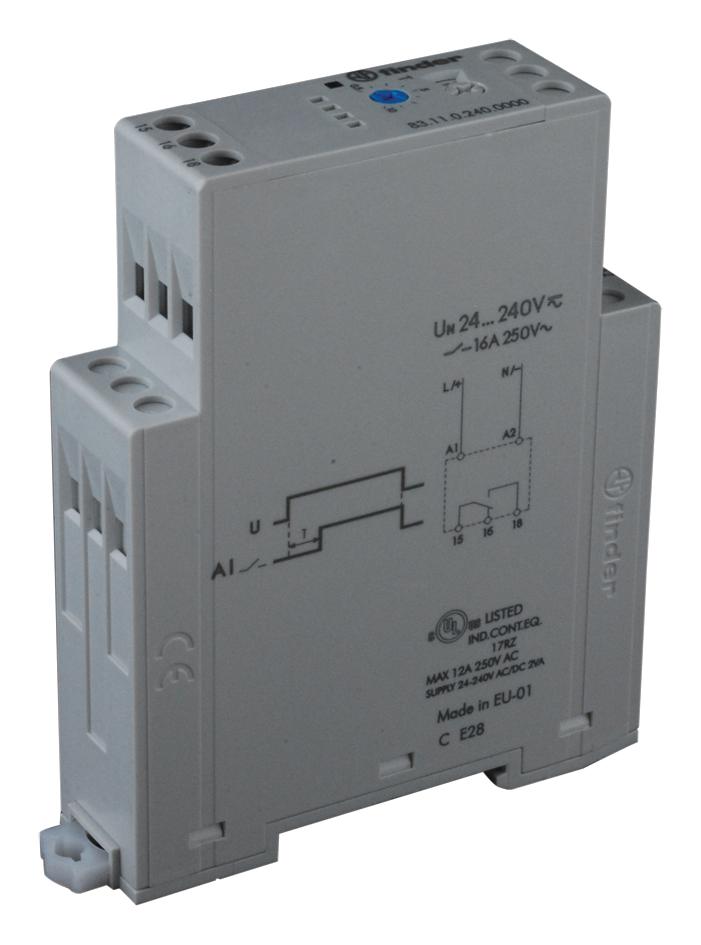

FINDER 831102400000 Timer Relay
The 83.11.0.240.0000 is a single-pole, eight-range SPDT timer relay featuring an on-delay function and AgNi contacts. It includes adjustable range and function selectors accessible via blade and cross-head screwdrivers, a timing trimmer, and a rail mounting clip. The relay offers screw terminal connections and eight time scales from 0.05 seconds to 10 days. It supports high input/output isolation, is multi-voltage compatible, and has an IP20 protection rating. Ideal for automation and process control, it switches a 0.5 kW single-phase motor at 230VAC and requires at least 300mW load.
FINDER 831102400000 Timer Relay Specifications:
- Type: SPDT (Single Pole Double Throw)
- Contact Material: AgNi
- Rated Current: 16 A
- Maximum Peak Current: 30 A
- Rated Voltage: 250/400 VAC
- Voltage Range: 16.8 to 265 VAC/DC
- Time Scales: 0.05 s to 10 days
- Repeatability: ±41%
- Recovery Time: 200 ms
- Minimum Control Impulse: 50 ms
- IP Protection: IP20
- Ambient Temperature Range: -20°C to +60°C
- Mounting: 35 mm rail (EN 60715)
- Rated Power: <15 VA / <2 W
- Electrical Life: 50,000 cycles (approximate)
- Insulation: Dielectric strength 4000 VAC
- Approval Standards: EN 45545-2, EN 61373, EN 50155
Buy the Finder Series 83 On-delay Timer Relay: 831102400000
Enhance your automation projects with the Finder Series 83 single-pole timer relay, featuring adjustable timing from 0.05 seconds to 10 days, multi-voltage operation, and high isolation. Designed for versatile applications, it offers reliable switching of 16 A loads, with a robust IP20 protection rating. Easy to install on 35 mm rails, this relay ensures precise control, making it an essential component for process automation, machinery, and engineering solutions needing dependable timing functions and durable performance.
Order your Finder Series 83 On-delay Timer Relay 831102400000 today and give your automation systems dependable and precise timing control.
