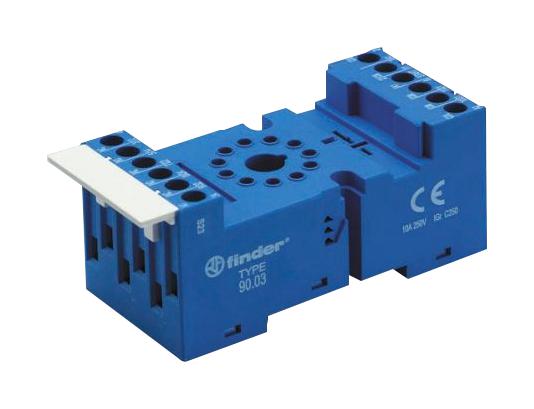

FINDER 9022SMA Relay Socket
The product is a series of module sockets designed for 60 series relays, suitable for panel or 35 mm rail mounting. Features include screw terminal (box or plate clamp), EMC suppression modules, and metal retaining clips. Rated for 10A at 250V with dielectric strength of 2kV AC, protection category IP20, and ambient temperature tolerance of -40°C to +70°C. Available with various accessories such as jumper links and identification tags, these sockets ensure reliable electrical connection and easy installation in automation and control systems.
FINDER 9022SMA Relay Socket Specifications:
- Rated values: 10 A-250V
- Dielectric strength: 2 kV AC
- Protection category: IP20
- Ambient temperature: -40°C to +70°C
- Screw torque: 0.5 to 0.8 Nm depending on model
- Wire strip length: 7 to 10 mm
- Max wire size: 1x6 / 2x2.5 mm² for socket models
- Housing colors: Blue, Black
- Mounting options: Panel or 35 mm rail (EN 60715)
- Applicable relay types: 60.12, 60.13
- Accessories include: Metal retaining clips, jumper links, identification tags
- Operating voltage: 250V AC
- Environmental conditions: Suitable for general industrial use
Buy the Finder Series Switchgear Accessories: 9022SMA
Experience reliable and secure electrical connections with the Finder Series relay socket, model 9022SMA. Designed for panel or rail mounting, it features screw terminals, IP20 protection, and a rated current of 10A at 250V. Compatible with 60 series relays, including models 60.12 and 60.13, it ensures compliance with safety standards and offers easy installation with accessories like metal retaining clips and jumper links. Perfect for industrial automation, control panels, and electrical switching applications. Buy online today for durable performance and quick setup.
Order your Finder Series 9022SMA relay socket today and ensure reliable connections for your control and automation projects.
Frequently Asked Questions
Where can I buy FINDER 9022SMA?
You can click on the BUY or RFQ button to purchase 9022SMA from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 9022SMA?
You can download the 9022SMA datasheet or visit the FINDER website for support.
Who is the manufacturer of 9022SMA?
FINDER
