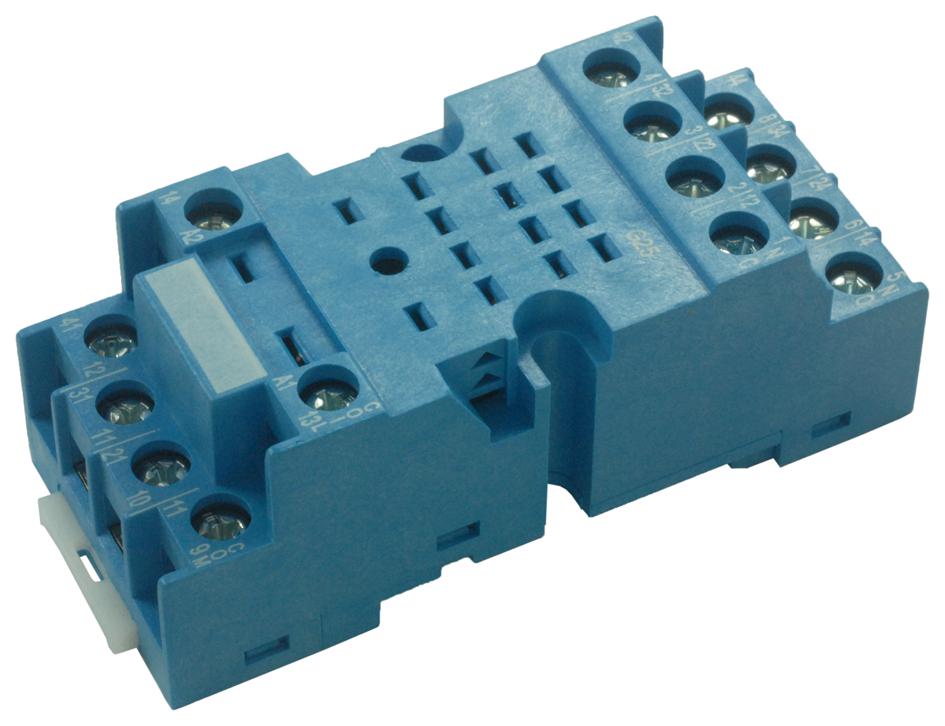

FINDER 9474 General Purpose Relay
FINDER 94.74 series relays are versatile, general-purpose relays suitable for a wide range of industrial applications. These relays feature 2, 3, or 4 pole configurations, offering flexibility in circuit design. They are designed for printed circuit board (PCB) mounting and are available with both AC and DC coil options to accommodate various power supply requirements. The relays incorporate cadmium-free contacts and offer an RT III (wash tight) option for enhanced reliability in harsh environments. They are commonly used in control panels, automation systems, and other electrical circuits where reliable switching is essential.
FINDER 9474 General Purpose Relay Specifications:
- Rated Current: 10-7 A
- Maximum Peak Current: 20-15 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V AC
- Rated Load AC1: 2,500 VA
- Rated Load AC15 (230 V AC): 500 VA
- Single Phase Motor Rating: 0.37 kW
- Breaking Capacity DC1: 10/0.25/0.12 A
- Minimum Switching Load: 300 mW
- Contact Material: AgNi
- Coil Voltage: 6-24 V AC/DC
- Operating Range: (0.8…1.1)UN
- Holding Voltage: 0.8 UN/0.5 UN
- Mechanical Life: 20 · 10^6 cycles
- Electrical Life: 200 · 10^3 cycles
- Operate/Release Time: 10/5 ms
- Insulation Between Coil and Contacts: 4 kV
- Dielectric Strength: 1,000 V AC
- Ambient Temperature Range: –40…+85 °C
