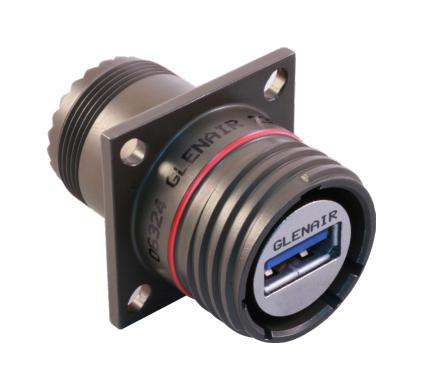

Glenair 233350NF00153ANH USB 3.0 Type A Connector
The GLENAIR 233-350NF00-153ANH is a robust USB 3.0 Type A connector designed for demanding applications requiring secure and reliable connections. It is a panel mount receptacle coupler with accessory threads, adhering to MIL-DTL-38999 Series III specifications. Available in various mounting configurations (wall mount, rear panel mount) and orientations (horizontal, vertical), this connector is suitable for industrial, military, and aerospace applications where high performance and durability are essential. It meets IP67 in unmated condition and IP68 mated.
Glenair 233350NF00153ANH USB 3.0 Type A Connector Specifications:
- shell_size: 15
- usb_performance: USB 3.0
- usb_interface: Type A
- alternate_key_position: A, B, C, D, E, N
- usb_orientation: Horizontal (H), Vertical (V)
- shrink_boot: Part No. 770-028 (Omit for None)
- material_finish_nf: Aluminum/Cadmium, Olive Drab
- material_finish_me: Aluminum/Electroless Nickel
- material_finish_mt: Aluminum/Nickel PTFE
- material_finish_zr: Aluminum/Black Zinc-Nickel
- material_finish_ab: Marine Bronze
- material_finish_xm: Composite/Electroless Nickel
- connector_style: USB Receptacle
- panel_mount_type: Rear panel mount, jam nut receptacle
- wall_mount_type: Wall mount receptacle with slotted holes
- thru_holes_type: Wall mount receptacle with thru-holes
- clinch_nuts_type: Wall mount receptacle with metric clinch nuts
- compliant_standards: D38999/20, /24, &/26
- shell_material: Al alloy
- insulators_material: High grade rigid dielectric/n.a.
- contacts_material: Copper alloy, gold plated
- usb_contacts_material: Copper alloy
- dielectric_material: Hi-temp thermoplastic PA9T UL94V-0
- hardware_material: Stainless steel /passivated
- seals_material: Silicone based elastomer
- ip_rating_unmated: IP67
- ip_rating_mated: IP68
