Glenair 80100716M1785SA Mighty Mouse Circular Connector

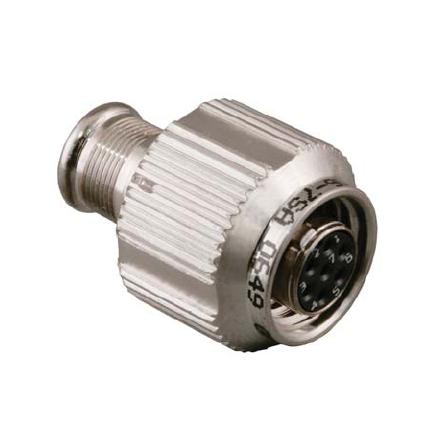

The Series 801 Mighty Mouse connector is a rugged, circular MIL-Spec device featuring a double-start ACME threaded coupling for secure mating. Constructed from machined aluminum or stainless steel, it includes a crimp contact system with removable contacts and is sealed with fluorosilicone and rear grommet to prevent water ingress. It supports various shell sizes and contact arrangements with options for hex or knurled coupling nuts, making it ideal for military, aerospace, and industrial applications requiring high durability and reliable connections.
Glenair 80100716M1785SA Mighty Mouse Circular Connector Specifications:
- Shell Sizes: 5 to 21
- Shell Material: Machined Aluminum or Stainless Steel
- Finish: Black Anodize, Electroless Nickel, Cadmium, Zinc-Nickel, or Nickel-PTFE
- Thread Type: Double-Start ACME with optional integral band platform
- Waterproof Seals: Fluorosilicone and rear grommet
- Contact Arrangements: 43 positions available with crimp contacts
- Contact Types: Signal, Power, Coaxial ordered separately
- Dimensions: Shell size varies from 0.540 inches (13.72 mm) to 1.550 inches (39.37 mm)
- Cable Entry: Accessory threads available for optional backshells or cable clamps
- Connectivity: Crimp contacts compatible with standard M22520 tools
- Suitable for high-reliability applications where secure, water-resistant connections are essential.
Buy the Glenair Series 801 Rugged Circular Connector 80100716M1785SA
Experience the durable and secure connectivity of the Glenair Mighty Mouse Circular Connector, ideal for military, aerospace, and industrial applications. Featuring a double-start ACME thread for enhanced protection against cross-mating and thread damage, it is constructed from high-quality aluminum or stainless steel shells and sealed with fluorosilicone and rear grommets for water resistance. The connector supports multiple shell sizes and contact arrangements with removable, crimped contacts, ensuring flexible and reliable connections for demanding environments. Purchase online today for trusted performance and durability.
Get Glenair 801-007 Mighty Mouse connector today—built for secure, rugged, and reliable connections in demanding environments.
Frequently Asked Questions
Where can I buy Glenair 80100716M1785SA?
You can click on the BUY or RFQ button to purchase 80100716M1785SA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80100716M1785SA?
You can download the 80100716M1785SA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80100716M1785SA?
Glenair
