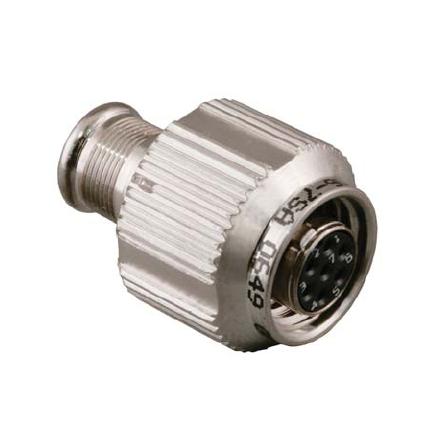

Glenair 80100716M64SA circular connector
The Mighty Mouse connector series offers a robust circular design suitable for military and aerospace use. Featuring double-start ACME threads, shells made from machined aluminum or stainless steel, and supplied with crimp contacts, these connectors ensure durability and reliable connectivity. Designed with fluorosilicone seals and rear grommets for water ingress protection, they support up to 43 contact arrangements in sizes 5 through 21. The series includes options with metal clips for contact locking, standard termination, and custom accessories like backshells and cable clamps, ideal for demanding environments.
Glenair 80100716M64SA circular connector Specifications:
- Shell sizes: 5 to 21, diameters range from 5.40 inches to 1.55 inches (13.72 mm to 39.37 mm)
- Thread types: UNC/UNEF-2A, sizes from .250-32 to 1.3125-18
- Shell material: machined aluminum or stainless steel with corrosion-resistant finishes
- Seals: fluorosilicone and rear grommet for water ingress protection
- Contacts: crimp type, removable, compatible with standard M22520 tools
- Maximum contact arrangements: up to 43 positions, with various keying options
- Dimensions and related threading details aligned with MIL specifications
- Available with hex or knurled coupling nuts, includes safety wire holes
- Designed for high durability and secure connections in demanding environments
Buy the Glenair Series 801 Mighty Mouse Circular Connector: 80100716M64SA
Experience the high reliability of the Glenair Series 801 Mighty Mouse circular connector, engineered for military and aerospace applications. Features double-start ACME threads, corrosion-resistant shells made of aluminum or stainless steel, and various contact arrangements up to 43 positions. The connector includes waterproof seals, rear grommets, and customizable options like backshells and cable clamps. Perfect for demanding environments requiring secure, durable, and versatile connections, ensuring optimal performance and longevity in critical applications.
Get Glenair Series 801 Mighty Mouse connector today—built for military-grade durability and reliable connections in aerospace and rugged environments.
Frequently Asked Questions
Where can I buy Glenair 80100716M64SA?
You can click on the BUY or RFQ button to purchase 80100716M64SA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80100716M64SA?
You can download the 80100716M64SA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80100716M64SA?
Glenair
