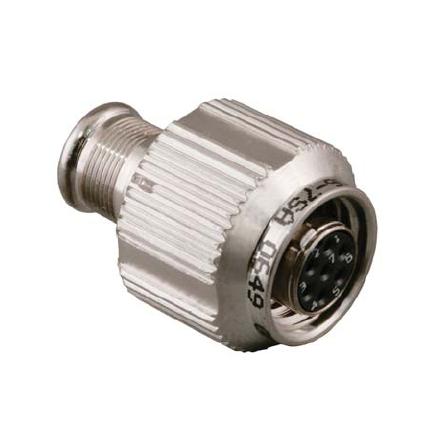

Glenair 80100716Z1919SA Circular MIL-spec Connector
This is a circular MIL-spec connector, dual start plug with an anti-decoupling spring socket. Suitable for military and aerospace applications requiring secure, reliable connections. Features a double-start ACME thread for enhanced protection against cross-mating and thread damage. Constructed with machined aluminum or stainless steel shells, it includes crimp contacts, fluorosilicone seals, and optional accessories such as cable clamps and backshells. The connector is available in multiple shell sizes from 5 to 21 with various contact arrangements, ensuring versatility and durability in demanding environments.
Glenair 80100716Z1919SA Circular MIL-spec Connector Specifications:
- Shell Sizes: 5 through 21
- Material: Machined aluminum or stainless steel
- Thread Type: Double-start modified stub ACME threads
- Thread Sizes: Ranging from 5 (0.540 in., 13.72 mm) to 21 (1.550 in., 39.37 mm)
- Seals: Fluorosilicone, rear grommet
- Contacts: Crimp, removable, choice of signal or power types
- Shell Finish: Black anodize, Electroless Nickel, Cadmium, Zinc-Nickel, or Nickel-PTFE
- Metallized parts: Provide water ingress protection
- Accessories: Cable clamp, backshell, metal clips inside for locking contacts
- Environmental Compliance: RoHS compliant
Buy the Glenair Series 801 Mighty Mouse ACME Threads: 80100716Z1919SA
Order the Glenair 80100716Z1919SA circular MIL-spec connector today online to ensure military-grade reliability. Featuring double-start ACME threads and robust aluminum or stainless steel shells, this connector delivers secure, corrosion-resistant connections ideal for aerospace, defense, and industrial applications. Its versatile sizes and removable contacts allow easy installation and maintenance, while high-quality seals protect against water ingress. Designed for demanding environments, this connector provides durability, precision, and performance, making it the perfect choice for critical systems requiring dependable performance across varied operational conditions.
Get Glenair 80100716Z1919SA today—built for secure military and aerospace connections with reliable sealing and rugged construction.
Frequently Asked Questions
Where can I buy Glenair 80100716Z1919SA?
You can click on the BUY or RFQ button to purchase 80100716Z1919SA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80100716Z1919SA?
You can download the 80100716Z1919SA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80100716Z1919SA?
Glenair
