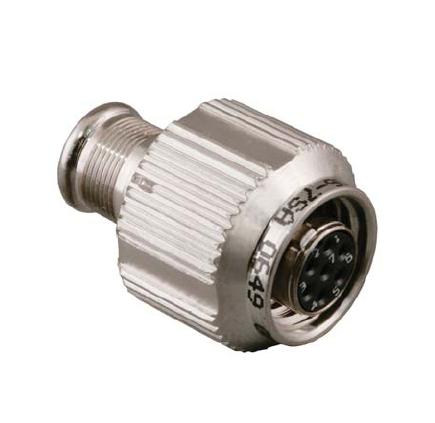

Glenair 80100816M1785PC Circular Connector
The Series 801 Mighty Mouse connector is a rugged circular MIL-spec device featuring a double-start ACME threaded mating interface for superior connection security. Manufactured with machined aluminum or stainless steel shells, it provides reliable water ingress protection via fluorosilicone seals and rear grommet. The connector is supplied with crimp contacts, which are removable, and compatible with standard M22520 tools. It includes metal clips inside the body to lock contacts firmly in place, ensuring durability and secure connections for military and aerospace applications. Available in various sizes and contact arrangements.
Glenair 80100816M1785PC Circular Connector Specifications:
- Shell Sizes: 5 to 21
- Shell Material: Aluminum or stainless steel
- Thread Type: Double-start ACME, UNEF-2A
- Shell Dimensions: Varies with size, e.g., 1.050 inch (26.67 mm) for size 13
- Contacts: Crimp type, removable, suitable for signal and power
- Seals: Fluorosilicone with rear grommet for water ingress protection
- Coupling Nut: Hex or knurled style available
- Applicable Standards: MIL-spec
- Water Resistance: Sealed against ingress with grommet and fluorosilicone seals
- Plugs and Receptacles: Compatible with M22520 crimp tools and accessories
- Connection Type: Secure threaded coupling with anti-decoupling features
- Color/Finish: Black anodized for aluminum shells, passivated stainless steel
Buy the Glenair Series 801 Mighty Mouse Circular Connector: 80100816M1785PC
Order the Glenair Series 801 Mighty Mouse Circular Connector online today and ensure secure, water-resistant connections for military, aerospace, and industrial applications. Crafted with rugged materials like aluminum or stainless steel, it features a double-start ACME thread design to prevent cross-mating errors. This connector includes removable crimp contacts compatible with standard M22520 tools, metal contact locking clips, and fluorosilicone seals to protect against water ingress. Whether for signal or power applications, this Mil-spec connector guarantees durability, reliability, and easy installation in demanding environments.
Get Glenair Series 801 Mighty Mouse Connector 80100816M1785PC today—built for military-grade durability and reliable connections in critical applications.
Frequently Asked Questions
Where can I buy Glenair 80100816M1785PC?
You can click on the BUY or RFQ button to purchase 80100816M1785PC from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80100816M1785PC?
You can download the 80100816M1785PC datasheet or visit the Glenair website for support.
Who is the manufacturer of 80100816M1785PC?
Glenair
