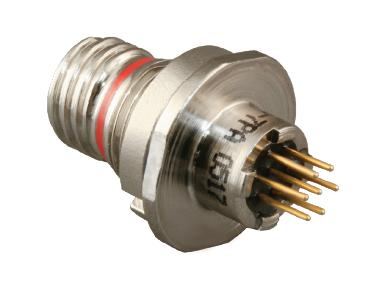

Glenair 80101107Z11655SA Mighty Mouse Connector
This is a rugged circular connector designed for military and aerospace applications, offering reliable connections with a low profile and integral standoffs. The Mighty Mouse Connector series features double-start ACME threads for secure attachment and is available in different shell styles and materials, including aluminum, zinc-nickel, and stainless steel. It provides options for water immersion and helium leak testing, making it suitable for demanding environments. The connectors are compliant with MIL standards, ensuring durability, corrosion resistance, and high-performance operation in critical applications.
Glenair 80101107Z11655SA Mighty Mouse Connector Specifications:
- Shell Style: Various, including square flange and jam nut
- Shell Material: Aluminum, Zinc-Nickel, Stainless Steel
- Thread Type: Double-Start ACME threads
- Shell Size Range: 5 to 21 (in inches: 0.350 to 1.625)
- Thread Sizes: UN-2A, 9F, 10, 13, 16
- Dimensions: Panel thickness up to 19.3 mm, tail diameter varies with shell size
- Water Resistance: Suitable for water immersion applications, sealed with special
- MOD-518
- requirements
- Leak Test: 100% helium leak tested at 1 x 10^-7 cc/sec at differential pressure
- Temperature Range: -40°C to +70°C
- Certifications: MIL-STD-810, Helium leak tested, water immersion-ready
- Termination: PCB, solder cup options available
- Design Features: Integral standoffs for board washout, non-removable contacts
Buy the Glenair Series 801 Mighty Mouse Circular Connector: 80101107Z11655SA
Order the Glenair Mighty Mouse Connector series online today for secure, high-performance connections in aerospace and military applications. Engineered for durability and compliance with MIL standards, these connectors feature robust materials including aluminum and stainless steel, with options for water immersion and helium leak testing. The series offers various shell styles and sizes, with integral standoffs for easy PCB mounting and washout. Ensure your critical applications are protected with this reliable, water-resistant, and corrosion-resistant connector that guarantees long-lasting, trouble-free operation in harsh environments.
Get Glenair 80101107Z11655SA today—built for military-grade durability and reliable connections in demanding environments.
Frequently Asked Questions
Where can I buy Glenair 80101107Z11655SA?
You can click on the BUY or RFQ button to purchase 80101107Z11655SA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80101107Z11655SA?
You can download the 80101107Z11655SA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80101107Z11655SA?
Glenair
