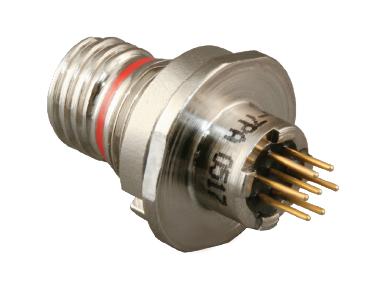

Glenair 80101107Z1710PA Circular MIL-Spec Connector
This is a circular MIL-spec connector known as the Mighty Mouse connector. It is designed to meet military standards for durability and reliability, suitable for various demanding applications requiring secure and robust connections.
Glenair 80101107Z1710PA Circular MIL-Spec Connector Specifications:
- Shell Style: Square Flange
- Shell Material: Aluminum with Electroless Nickel
- Finish: Black Anodize
- Contact Type: Pin, Solder Cup or PCB (Hen Centltn)
- Waterproof: Series 801 watertight, helium leak rate of 1 x 10^-9 cc/sec at 1 atm from -40°C to +70°C
- Dimensions: Shell size varies from 5 to 16 with respective mm measurements, maximum panel thickness 0.760 inches (19.3 mm)
- Thread Type: UN-2A, 2A Flat
- Additional Features: Integral standoffs, low profile shell, non-removable contacts
- Certifications: MIL-STD-810, Helium leak tested, RoHS compliant
- Application: Military, aerospace, industrial environments requiring water immersion resistance and rugged reliability
Buy the Glenair 801-011 U+2013 Reliable Circular MIL-Spec Connector for Military and Industrial Applications
Purchase the Glenair 801-011 Mighty Mouse connector online today for military-grade durability, water immersion resistance, and secure connections in demanding industrial environments. Whether for aerospace, defense, or tough industrial equipment, this connector provides dependable performance with low profile design, integral standoffs, and non-removable contacts. Easy online ordering ensures quick delivery. Equip your projects with a proven, Helium leak-tested connection that meets stringent MIL-STD-810 standards and RoHS compliance. Reliable, rugged, and ready for demanding conditions—order now for your critical application needs.
Order your Glenair 801-011 Mighty Mouse connector today and ensure your projects benefit from the robust, reliable, and water-resistant connection solution.
