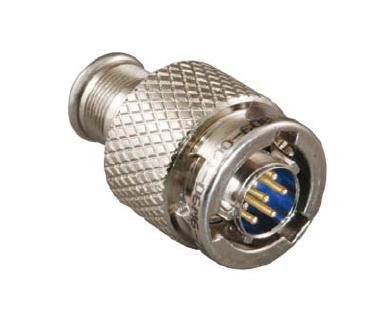

Glenair 80300106M1026PN Circular MIL-spec Connector
This is a circular MIL-spec connector with a Mighty Mouse connector plug, featuring a pin configuration suitable for military and aerospace applications. It provides reliable electrical connections in demanding environments.
Glenair 80300106M1026PN Circular MIL-spec Connector Specifications:
- Shell Sizes: 5 through 14 with 35 contact arrangements
- Shell Material: Aluminum with various finishes including Black Anodize, Electroless Nickel, Cadmium, Zinc-Nickel, and Black Chromate
- Coupling Mechanism: Bayonet, push to mate then rotate 90° to lock
- Seals: Fluorosilicone seals and rear grommet for water ingress protection
- Contacts: Crimp contacts, removable, with options in stainless steel or copper alloy
- Contact Termination: Terminate with standard M22520 tools
- Shell Key Positions: 150°, 210°, 95°, 140°
- Dimensions: Shell size 5 (0.245 in / 6.22 mm), size 14 (0.805 in / 20.45 mm)
- Operating Environment: Suitable for light-to-medium duty, splashproof, withstand rain and condensation
- Designed for rugged environments, ideal for military and aerospace applications
Buy the Buy Glenair Circular Connectors Part Number 80300106M1026PN Online
Purchase the Glenair Series 803 Mighty Mouse circular connector online and enjoy fast, secure delivery. Designed for military, aerospace, and industrial use, this rugged connector features a reliable bayonet coupling mechanism, durable aluminum shells with premium finishes, and removable crimp contacts. Its splashproof design withstands rain and condensation, making it ideal for demanding environments. Fit for light to medium duty applications, this connector ensures secure, high-quality electrical connections with easy termination using standard tools. Buy now for dependable performance and longevity in critical projects.
Order your Glenair Series 803 Mighty Mouse connector with part number 80300106M1026PN today and ensure reliable, high-quality connections for demanding environments.
Frequently Asked Questions
Where can I buy Glenair 80300106M1026PN?
You can click on the BUY or RFQ button to purchase 80300106M1026PN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300106M1026PN?
You can download the 80300106M1026PN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300106M1026PN?
Glenair
