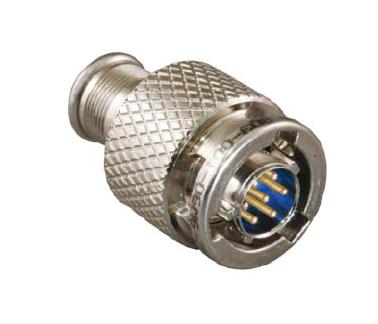

Glenair 80300106NF1026PN Rugged Circular Connector
This compact and rugged circular connector, known as the Mighty Mouse connector, features a bayonet coupling mechanism for quick mating and secure locking. Constructed from machined aluminum or stainless steel, it is ideal for military and industrial use where water immersion is not necessary. It offers splashproof protection against rain and condensation, with removable crimp contacts, fluorosilicone seals, and optional cable accessory threads. Suitable for light-to-medium duty applications, it ensures reliable electrical connections with optional rugged sealing and metal locking clips for enhanced durability and performance.
Glenair 80300106NF1026PN Rugged Circular Connector Specifications:
- Shell Size: 5 through 14 with options for aluminum or stainless steel
- Connection Type: Bayonet coupling with rotating nut and integral bayonet pins
- Materials: Aluminum with Black anodize or stainless steel (passivated)
- Contacts: Crimp contacts, removable, order separately, suitable for signal and power
- Seals: Fluorosilicone seals and rear grommet for water ingress protection
- Dimensions: Varies by shell size, for example, shell size 8: 0.750 inch (19.05 mm)
- Key Positions: N (150°), Y (95°), Z (140°) with respective rotation angles
- Application: Suitable for harsh environments where water immersion isn't a concern
- Certification: Complies with MIL specifications, RoHS compliant
- Cable Entry: Integral accessory thread for optional cable clamp or backshell
- Temperature Rating: Not specified but designed for rugged industrial and military environments
Buy the Glenair Series 803 Mighty Mouse Circular Connector: 803-00106NF1026PN
Purchase the Glenair Series 803 Mighty Mouse circular connector online today and benefit from its robust design, quick bayonet coupling, and water-resistant sealing. Ideal for military, aerospace, and industrial applications, this connector offers reliable electrical connections in demanding environments. Featuring durable machined aluminum or stainless steel construction, removable crimp contacts, and seals to prevent water ingress, it ensures ease of installation and maintenance. Secure your equipment with this high-quality connector that guarantees performance and durability, available for immediate online order.
Buy Glenair Series 803 Mighty Mouse connector now and experience unmatched reliability and performance in rugged industrial and military environments.
Frequently Asked Questions
Where can I buy Glenair 80300106NF1026PN?
You can click on the BUY or RFQ button to purchase 80300106NF1026PN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300106NF1026PN?
You can download the 80300106NF1026PN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300106NF1026PN?
Glenair
