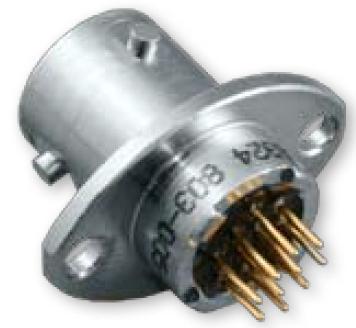

Glenair 80300502M1026SN Circular MIL-spec Connector
This is a circular MIL-spec connector featuring a Mighty Mouse bayonet coupling mechanism. It includes a female flange mount receptacle with a PCB solder cup tail, designed for reliable electronic connections in demanding environments. The connector's low profile shell with integral standoffs minimizes protrusion inside enclosures, and its sealed design ensures water immersion resistance up to MIL-STD-810 Method 512G requirements. Made from aluminum with electroless nickel finish and available with RoHS compliance, it offers durability, corrosion resistance, and easy installation for military and industrial applications.
Glenair 80300502M1026SN Circular MIL-spec Connector Specifications:
- Shell Size: 5 or 6
- Shell Material: Aluminum with Electroless Nickel finish
- Configuration: Flange Mount, Jam Nut Receptacle
- Connector Type: Circular MIL-spec, Mighty Mouse bayonet coupling
- Water Resistance: Sealed for water immersion up to MIL-STD-810 Method 512G
- Contact Arrangement: PCB solder cup tail, non-removable contacts
- Maximum Panel Thickness: 0.100 inch (2.54 mm)
- Shell Dimensions: Varies by size, detailed measurements provided in technical drawings
- Thread: 0.375-32 UNEF-2A
- Operating Temperature: -40°C to +70°C
- RoHS Compliance: Yes
- Certifications: MIL-STD-810 G
Buy the Glenair 80300502M1026SN – Reliable Circular MIL-spec Connector for Industrial Applications
Order the Glenair Circular MIL-spec Connector with Mighty Mouse bayonet coupling online today. Designed for demanding military and industrial applications, it features a durable aluminum shell with electroless nickel finish, sealed water immersion resistance, and non-removable PCB solder cup contacts. Its low profile shell with integral standoffs minimizes enclosure protrusion, providing a secure connection with MIL-STD-810G compliance. Perfect for applications requiring reliable, corrosion-resistant, and easy-to-install electronic interconnections, this connector is essential for mission-critical systems demanding durability and performance.
Get Glenair 80300502M1026SN today—built for precision and long-lasting durability in demanding environments with water resistance features.
Frequently Asked Questions
Where can I buy Glenair 80300502M1026SN?
You can click on the BUY or RFQ button to purchase 80300502M1026SN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300502M1026SN?
You can download the 80300502M1026SN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300502M1026SN?
Glenair
