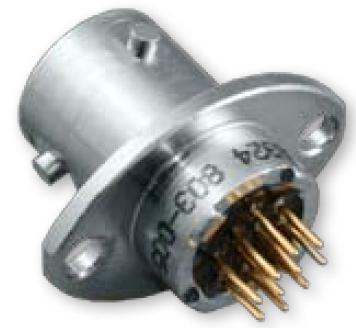

Glenair 80300502M813SN Circular Connector
This is a circular connector compliant with MIL specifications, commonly known as the Mighty Mouse connector. It features a female mount socket with a PC tail for secure and reliable connections in military or industrial applications. The Series 803 PCB connector offers low profile shells, integral standoffs for board washout, and is available in water immersion sealed and water-resistant versions. Designed for rugged environments, it ensures reliable electrical connectivity with precise machined parts, corrosion-resistant finishes, and specifications suitable for demanding operational conditions in aerospace, defense, and industrial automation.
Glenair 80300502M813SN Circular Connector Specifications:
- Shell Sizes: 5, 6, 7, 8, 9, 10, 12, 14
- Shell Material: Aluminum with Electroless Nickel, Chromate, or Zinc-Nickel finishes
- Shell Style: Flange Mount and Jam Nut
- Dimensions vary by size, featuring keyway, thread, and panel thickness specifications
- Contact Arrangement: Solder Cup, RoHS compliant, with optional sealing for watertight applications
- Pin configuration includes standard M positions, with optional resilient silicone potting for watertight sealing
- Operating Temperature Range: -40°C to +70°C, with sealed variants tested for helium leak rate of 1x10-9 cc/sec
- Certifications: MIL-STD-810 compatible, RoHS compliant, UL Listed
- Connector dimensions include panel thickness up to maximum specified, with locking mechanisms for secure mating
- Designed for rugged military, aerospace, and industrial uses with high durability and corrosion resistance
Buy the Glenair 803-005 U–2013 Reliable Circular Connector for Industrial Applications
Purchase the Glenair 803-005 circular connector online today to ensure secure, reliable connections in demanding industrial and military environments. This connector features a durable low-profile shell, water-resistant sealing options, and a PC tail for easy mounting and wiring. Designed for rugged applications, it offers high precision, corrosion resistance, and MIL-compliant specifications. Whether you require watertight sealing or standard configurations, buying online provides quick access to trusted components that meet your operational needs with ease. Secure your reliable connection now!
Buy Glenair 803-005 now and experience unmatched reliability and performance for your military and industrial connections.
Frequently Asked Questions
Where can I buy Glenair 80300502M813SN?
You can click on the BUY or RFQ button to purchase 80300502M813SN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300502M813SN?
You can download the 80300502M813SN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300502M813SN?
Glenair
