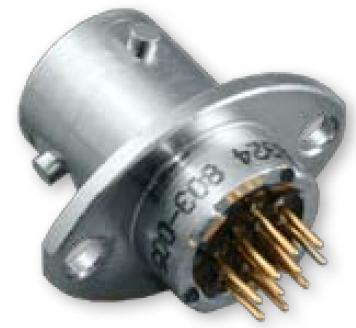

Glenair 80300502M919SN Aerospace Circular Connector
This is a circular MIL-SPEC connector, commonly known as a Mighty Mouse connector. It features a male fingered connector with a mounting shell and a printed circuit tail, designed for military and aerospace applications requiring secure and reliable connections. The connector series includes options for water immersion sealing, with specific models rated for unsealed or watertight requirements according to MIL-STD-810. Its compact design and corrosion-resistant materials ensure optimal performance in demanding environmental conditions, making it ideal for aerospace, defense, and industrial use.
Glenair 80300502M919SN Aerospace Circular Connector Specifications:
- Shell Size: 5, 6, 7, 8, 9, 10, 12, 14
- Shell Material: Aluminum / Electroless Nickel, Zinc-Nickel, or other corrosion-resistant finishes
- Shell Style: Flange Mount or Jam Nut receptacle
- Connection Type: Solder cup for PCB, with RoHS compliant options
- Maximum Panel Thickness: 100 (2.54) mm
- Thread Size: #23 to #20, 0.375-32 UNEF-2A or UN-2A
- Connector Diameter: Ranges from 0.513 in (17.86 mm) for size 5 to 1.0625 in (32.11 mm) for size 14
- Operating Temperature: -40°C to +70°C for sealed models
- Sealing: Watertight options for MIL-STD-810 Method 512G compliance
- Ingress Protection: Water immersion rated for specific models, non-mated connectors are not submersible
- Certification: MIL-STD-810, Tested for helium leak rate of 1x10−9 cc/second at 1 atmosphere
Buy the Buy Glenair Mighty Mouse Part Number 80300502M919SN Online
Purchase the Glenair Series 803 Mighty Mouse connector online today and benefit from its compact design and robust water-sealed options, perfect for military and aerospace applications. With various sizes and corrosion-resistant finishes, this connector guarantees secure and reliable electrical connections even in harsh environments. Whether you need unsealed or watertight models, ordering online provides quick access to high-quality, MIL-STD-810-compliant connectors that meet stringent industry standards for durability and performance in demanding operational conditions.
Order your Glenair Series 803 Mighty Mouse connector today and ensure your military, aerospace, and industrial projects have reliable, sealed connections.
Frequently Asked Questions
Where can I buy Glenair 80300502M919SN?
You can click on the BUY or RFQ button to purchase 80300502M919SN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300502M919SN?
You can download the 80300502M919SN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300502M919SN?
Glenair
