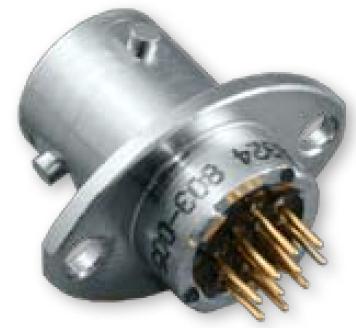

Glenair 80300502M919SX MIL-Spec Circular Connector
This is a circular MIL-spec connector, commonly known as the Mighty Mouse connector, designed for military and aerospace applications. It features a female mounting socket with a tail for secure connection and reliable signal transmission. The connector is available in different shell sizes, such as 5, 6, 7, 8, 9, 10, 12, and 14, with various dimensions and threaded tail options. It features low profile shells for minimal protrusion inside enclosures, integral standoffs for board washout, and non-removable contacts. Sealed versions provide water immersion protection up to MIL-STD-810 Method 512G specifications, maintaining helium leak rate testing for reliability in demanding environments.
Glenair 80300502M919SX MIL-Spec Circular Connector Specifications:
- Shell Sizes: 5, 6, 7, 8, 9, 10, 12, 14
- Shell Material: Aluminum or Stainless Steel
- Finish: Electroless Nickel, Cadmium, Olive Drab Chromate, or Zinc-Nickel
- Threaded Tail Types: #23, #28, #32 UNEF-2A, UN-2A, or #20
- Maximum Panel Thickness: 0.100 inches (2.54 mm)
- Dimensions vary by shell size; for example, Shell 8: 1.154 inches (29.31 mm) max diameter, 0.964 inches (24.49 mm) min diameter, with 0.593 inches (15.07 mm) thread length.
- Watertight Seals: Available in sealed variants with helium leak rate of 1 x 10^-9 cc/sec, compliant with MIL-STD-810 Method 512G
- Application: Military, aerospace, industrial equipment requiring durability and water immersion resistance
- Connector Type: Female, with solder cup termination, designed for PCB mounting
- Operating Temperature Range: -40°C to +70°C, or as specified for sealed variants
Buy the Glenair 803-005 U–2013 Reliable MIL-Spec Circular Connector for Industrial Applications
Purchase the Glenair MIL-Spec Circular Connector online today and ensure your military or aerospace project benefits from high durability, water resistance, and reliable signal transmission. Designed with robust materials and sealed options, this connector provides excellent performance in demanding conditions. Whether for PCB mounting or military-grade equipment, this connector's low profile shell, integral standoffs, and sealed versions make it ideal. Order now to enjoy fast delivery and prioritize quality in your critical applications, ensuring seamless integration and maximum operational reliability.
Get Glenair 803-005 today—built for precision and long-lasting durability in military and aerospace environments.
Frequently Asked Questions
Where can I buy Glenair 80300502M919SX?
You can click on the BUY or RFQ button to purchase 80300502M919SX from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300502M919SX?
You can download the 80300502M919SX datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300502M919SX?
Glenair
