Glenair 80300502NF919FN Circular MIL-Spec Connector
This is a Circular MIL-Spec connector known as the Mighty Mouse Connector. It complies with military standards for durability and reliable performance in demanding environments.
Glenair 80300502NF919FN Circular MIL-Spec Connector Specifications:
- Shell Size: 5-703, 6-788, 7-890, 8, 9, 10, 12, 14
- Shell Material: Aluminum / Electroless Nickel, Zinc-Nickel, or Cadmium finish
- Contact Type: Receptacle for solder cup arrangement, non-removable contacts
- Waterproof Options: 803-015 sealed connectors for MIL-STD-810 immersion (helium leak rate 1 x 10-9 cc/sec at one atmosphere)
- Shell Diameter: Ranges from 0.513 inches (13.03 mm) to 1.264 inches (32.11 mm) depending on size
- Temperature Range: -40°C to +70°C for watertight versions
- Thread Size: 0-32 UNEF-2A to 0.750-28 UN-2A
- Panel Thickness: Max 0.100 inches (2.54 mm) to 0.375 inches (9.52 mm)
- Keyway: 2.79/2.62 inches
- Max Stand-off: 0.860 inches (21.84 mm)
- Mounting: Flange mount and jam nut options available
- Application: MIL-spec, military-grade and industrial environment use
- Certifications: MIL-DTL-38999 standard compliance

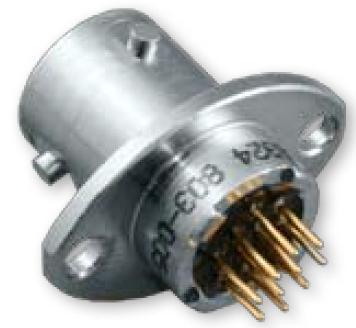

Buy the Glenair 803-005 U–2013 Reliable Circular Military Connector for Industrial Applications
Secure your military-grade connections with our Glenair Circular MIL-Spec Connector. Designed for durability and reliability, this connector features robust construction, water-resistant options, and non-removable contacts suitable for severe conditions. Perfect for military, aerospace, and industrial applications requiring high-performance connectors that withstand demanding environments. Order online now to guarantee dependable performance, fast delivery, and expert support for your critical projects. Elevate your system reliability with our trusted MIL-spec connectors today.
Order your Glenair Series803 803-005 military-grade circular connector today and ensure your projects meet the highest durability standards for demanding environments.
Frequently Asked Questions
Where can I buy Glenair 80300502NF919FN?
You can click on the BUY or RFQ button to purchase 80300502NF919FN from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80300502NF919FN?
You can download the 80300502NF919FN datasheet or visit the Glenair website for support.
Who is the manufacturer of 80300502NF919FN?
Glenair
