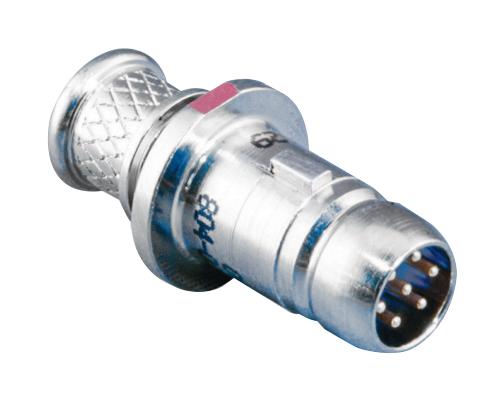

Glenair 80400106M53PA Plug Connector
The Series 804 Push-Pull Mighty Mouse Plug Connector offers quick disconnect functionality with secure snap-in design for shield attachment and easy release via Band-Master™ ATS. It features two shell styles—one with a Banding Platform and the other with an Accessory Thread—available in multiple finishes including aluminum and stainless steel, with RoHS compliance. The connector accommodates various contact arrangements, sizes 22 to 28 AWG, and keying options for quick mating. Durable and corrosion-resistant, it suits high-density applications requiring reliable, easy-to-install connections.
Glenair 80400106M53PA Plug Connector Specifications:
- Shell Material: Aluminum alloy or stainless steel, various finishes including anodized, nickel, cadmium, zinc-nickel
- Contacts: Size 23 crimp type, 22-28 AWG, with options for pin or socket, with or without contacts, supplied loose
- Dimensions: Length approximately 0.950-0.990 inches, depending on style, with detailed measurements for different shells
- Threads: 0.250-32 UNEF-2A, 0.3125-32 UNEF-2A, 0.4375-28 UNEF-2A, 0.5000-28 UNEF-2A, 0.6250-24 UNEF-2A, 0.6875-24 UNEF-2A, 0.795-20 UNEF-2A, 0.865-24 UNEF-2A, 0.9375-20 UNEF-2A
- Contact Material: Copper alloy, gold-plated per ASTM B 488, Type II, Code C
- Finish: Black anodize, electroless nickel, cadmium with olive drab, zinc-nickel with black chromate
- Environmental: RoHS compliant, corrosion-resistant
- Design: Push-pull coupling, integral band platform or accessory thread, keyed for polarization, shield-secured snap-in design
Buy the Buy Glenair Push-Pull Mighty Mouse Part Number 804-001-06 Online
Purchase the Glenair Push-Pull Mighty Mouse Plug Connector 804-001-06 online for quick, secure, and reliable connections suitable for high-density and demanding applications. This high-quality connector features quick pull release, multiple shell styles, and durable finishes, making installation and maintenance easier. Ideal for aerospace, military, or industrial use, it ensures excellent shielding and polarization options. Order now to ensure continuous operation in your critical systems and benefit from Glenair’s trusted engineering and manufacturing standards.
Buy Glenair 804-001-06 now and experience unmatched reliability and high-performance quick disconnect connector with secure shield attachment.
Frequently Asked Questions
Where can I buy Glenair 80400106M53PA?
You can click on the BUY or RFQ button to purchase 80400106M53PA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80400106M53PA?
You can download the 80400106M53PA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80400106M53PA?
Glenair
