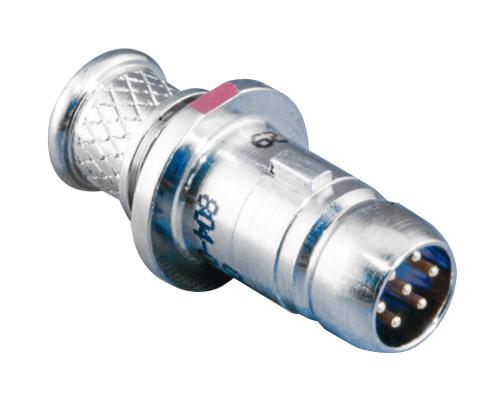

Glenair 80400106M9210PA Push-Pull Plug Connector
The GLENAIR 804 series Push-Pull Mighty Mouse plug connector is designed for applications requiring a robust and reliable connection. Its quick disconnect design allows for easy mating and release, while the keying options provide polarization to prevent mis-mating. Available with banding platforms or accessory threads for strain relief, and a range of shell materials and finishes to suit diverse environmental conditions. This connector is ideal for aerospace, military, and industrial applications where secure and reliable connections are critical.
Glenair 80400106M9210PA Push-Pull Plug Connector Specifications:
- Series: 804 Push-Pull Mighty Mouse
- Shell Style: Plug with Banding Platform
- Shell Material and Finish: Aluminum / Cadmium with Olive Drab Chromate
- Shell Size - Insert Arrangement: See Contact Arrangements Page G-2
- Contact Type: Pin, less contacts
- Polarization: Single Master Key
- Connector Compliant: RoHS Compliant
- Contact Size: Size 23 crimp type
- Wire Accommodates: 22, 24, 26 and 28 gage wire
- Crimp Frame: 809-015
- Positioner: 809-005
- Insertion/Extraction Tool: 809-088
- Shell Material: Aluminum alloy or CRES
- Insulator Material: LCP
- Interfacial Seal/Gasket Material: Fluorosilicone
- Contact Material: Copper alloy
- Contact Plating: Gold per ASTM B 488, Type II, Code C, Class 1.25
Buy the 804-001-06M9-210PA GLENAIR Push-Pull Plug Connector | myMectronic
Purchase the GLENAIR 804-001-06M9-210PA Push-Pull Plug Connector securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Glenair 80400106M9210PA?
You can click on the BUY or RFQ button to purchase 80400106M9210PA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80400106M9210PA?
You can download the 80400106M9210PA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80400106M9210PA?
Glenair
