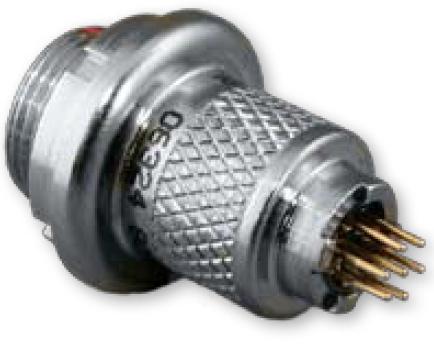

Glenair 80400500C813P PCB Circular Connector
This MIL-spec circular connector is designed for PCB mounting, featuring a slip ring receptacle with 8 shells and 13 pins. It provides reliable, sealed electrical connections suitable for demanding military and industrial applications. The connector type is a push-pull Mighty Mouse series, ensuring secure mating and easy engagement in rugged environments. It includes corrosion-resistant finishes and meets MIL standards for immersion, making it ideal for harsh environmental conditions. The product offers durable construction with high-quality materials for long-term reliability in mission-critical systems.
Glenair 80400500C813P PCB Circular Connector Specifications:
- Series: 804 Push-Pull Mighty Mouse
- Application: PCB mounting
- Shell Size: 13
- Contact Configuration: 13 positions with 13 pins
- Shell Material / Finish: Aluminum / Black Anodize
- Configuration Type: Solder Cup or PCB
- Sealing: Watertight, specially sealed "MOD-518" for water immersion
- Leak Rate Test: Helium leak rate of 1 x 10^-8 cc/second at one atmosphere
- Operating Temperature Range: -40°C to +70°C
- Thread Size: 0.4375-32 UN-2A
- Physical Dimensions: Shell diameter approximately 0.590 inches, length varies with model
- Materials: Aluminum, Nickel, Zinc-Nickel, Cadmium finishes
Buy the Lenair Series 804 PCB Connectors: 80400500C813P
Order the Lenair Series 804 PCB Circular Connector 80400500C813P online today to ensure your projects benefit from high-quality, reliable military standard connections. This connector offers robust sealing, corrosion resistance, and a sturdy design suitable for demanding industrial and aerospace applications. Its comprehensive features include sealed construction for water immersion, metal shell with durable finish, and precise pin arrangement for secure electrical connections. Enjoy fast, easy purchasing with guaranteed authenticity and competitive pricing to support your mission-critical requirements efficiently.
Buy Lenair Series 804 PCB connector 80400500C813P now and experience unmatched reliability and military-grade performance in harsh environments.
Frequently Asked Questions
Where can I buy Glenair 80400500C813P?
You can click on the BUY or RFQ button to purchase 80400500C813P from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80400500C813P?
You can download the 80400500C813P datasheet or visit the Glenair website for support.
Who is the manufacturer of 80400500C813P?
Glenair
