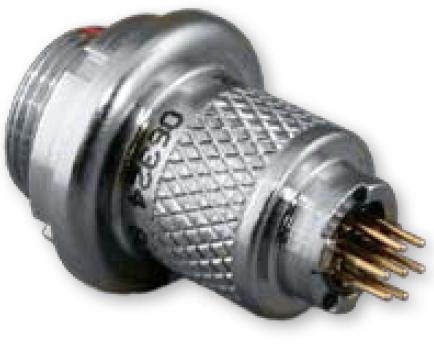

Glenair 80400507M53S Circular Connector
The Series 804 Push-Pull Mighty Mouse is a durable circular connector engineered for military and industrial applications, offering PCB and solder cup receptacles. Designed to withstand water immersion and harsh conditions, it features a 5-position configuration with size 3 contacts, ensuring reliable, secure electrical connections. The connector's robust construction includes aluminum or zinc-nickel shells with RoHS-compliant finishes, factory-installed non-removable contacts, and optional front or rear panel mounting. It is tested to meet MIL-STD-810 water immersion requirements, making it ideal for demanding environments where durability and water-tight sealing are essential.
Glenair 80400507M53S Circular Connector Specifications:
- Shell Material: Aluminum or Zinc-Nickel with RoHS-compliant finishes
- Water Immersion Rating: Unmated Water Resistant, 804-005 for general, 804-020 for MIL-STD-810 immersion
- Configuration: 5-Position, with size 3 contacts
- Mounting: Front or rear panel options, factory-installed non-removable contacts
- Contacts: Solder cup or PCB terminals, with optional sealing for water-tight applications
- Thread Size: Various, including 0.275 inches #23, 0.330 inches #20, 0.432 inches #20, and larger
- Temperature Range: Not specified but designed for harsh environments
- Sealing: Special sealed version “MOD-518” tested to helium leak rates of 1 x 10-9 cc/sec at 1 atm from -40°C to +70°C
- Certifications: MIL-STD-810, RoHS compliant
- Dimensions: Varies with size, typical acceptance of ±0.005 inches in dimensions, detailed dimensions available in product datasheets
Buy the Glenair 80400507U2013 Reliable Circular Connectors for Industrial Applications
Purchase the Glenair Circular Connector today for reliable military-grade connections suitable for water immersion, harsh environments, and demanding industrial applications. Designed with a 5-position configuration, robust shell materials, and sealed options, this connector ensures secure electrical performance under extreme conditions. Factory-installed non-removable contacts and multiple mounting options provide versatile installation. With water-resistant features rated for MIL-STD-810 immersion testing, it delivers exceptional durability and sealing, making it an essential component for critical military, aerospace, and industrial electronic systems. Buy online now for fast delivery and quality assurance.
Get Glenair 80400507 today—built for precision and long-lasting durability in demanding military and industrial environments.
Frequently Asked Questions
Where can I buy Glenair 80400507M53S?
You can click on the BUY or RFQ button to purchase 80400507M53S from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80400507M53S?
You can download the 80400507M53S datasheet or visit the Glenair website for support.
Who is the manufacturer of 80400507M53S?
Glenair
