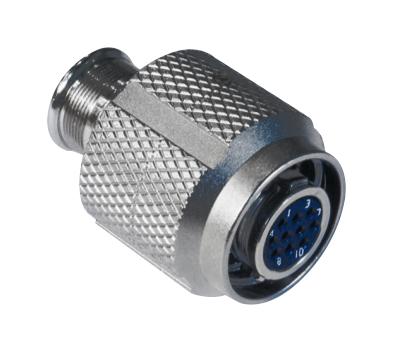

Glenair 80500116M11210PA Mighty Mouse Plug Connector
GLENAIR's Series 805 Mighty Mouse connectors are designed for applications requiring a robust and reliable connection, particularly in environments with high vibration. The spring mechanism in the coupling nut ensures a secure mate, eliminating the need for safety wire or torque tools. Constructed with machined aluminum or stainless steel shells, these connectors can accommodate Glenair size 16 or 20HD fiber optic termini. Metal clips secure the termini, and fluorosilicone seals protect against water ingress. Available with hex or knurled coupling nuts and various shell materials and finishes, the 805 series provides versatility for diverse industrial and military applications.
Glenair 80500116M11210PA Mighty Mouse Plug Connector Specifications:
- Series: 805 Mighty Mouse
- Connector Type: Plug
- Shell Material: Aluminum or Stainless Steel
- Coupling Nut: Hex or Knurled
- Operating Temperature: -55° C to +150° C
- Immersion Test: MIL-STD-810 Method 512, One Meter for One Hour
- EMI Performance: 65 dB Minimum from 1 GHz to 10 GHz
- Insulator Material: High-grade rigid dielectric
- Seal Material: Fluorosilicone Rubber
- Contact Retainer Clip Material: Copper alloy, Unplated
- Shell Size: 8 through 23
- Ratcheting Anti-Decoupling Mechanism: Yes
- RoHS Compliant: Yes
Buy the 805-001-16M11-210PA GLENAIR Mighty Mouse Plug Connector | myMectronic
Purchase the GLENAIR 805-001-16M11-210PA Mighty Mouse Plug Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Glenair 80500116M11210PA?
You can click on the BUY or RFQ button to purchase 80500116M11210PA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80500116M11210PA?
You can download the 80500116M11210PA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80500116M11210PA?
Glenair
