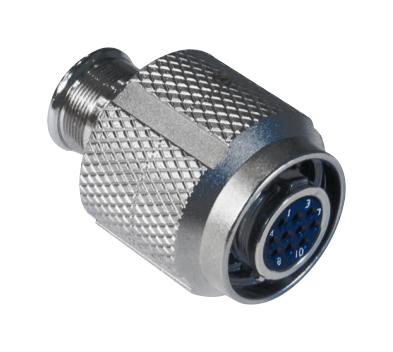

Glenair 80500116M1331PA Mighty Mouse Plug Connector
GLENAIR’s Series 805 Mighty Mouse connectors are designed for robust performance in demanding environments. The spring-centered coupling nut locks into radial teeth on the plug barrel, ensuring a secure connection even under high vibration conditions. These connectors feature machined aluminum or stainless steel shells, accommodating Glenair size 16 or 20HD fiber optic termini. Metal clips secure the termini, and fluorosilicone seals with a rear grommet protect against water ingress. They are ideal for applications requiring reliable connectivity in harsh conditions.
Glenair 80500116M1331PA Mighty Mouse Plug Connector Specifications:
- Series: 805 Mighty Mouse
- Shell Material: Aluminum or Stainless Steel
- Operating Temperature: -55°C to +150°C
- Immersion Test: MIL-STD-810 Method 512, One Meter for One Hour
- EMI Performance: 65 dB Minimum from 1 GHz to 10 GHz
- Insulator Material: High-grade rigid dielectric
- Seals Material: Fluorosilicone Rubber
- Contact Retainer Clip Material: Copper alloy, Unplated
- Shell Size: 8 through 23
- Contact Type A: Pin Connector, less termini
- Contact Type B: Socket Connector, less termini
- Shell Key Positions: A, B, C, D, E, F
- Shell Finish Options: ['Aluminum / Black Anodize (RoHS Compliant)', 'Aluminum / Electroless Nickel (RoHS Compliant)', 'Aluminum / Nickel-PTFE (RoHS Compliant)', 'Aluminum / Cadmium with Olive Drab Chromate', 'Aluminum / Zinc-Nickel with Olive Drab Chromate', 'Aluminum / Zinc-Nickel with Black Chromate', 'Stainless Steel / Passivated (RoHS Compliant)']
Buy the 805-001-16M13-31PA GLENAIR Mighty Mouse Plug Connector | myMectronic
Purchase the GLENAIR 805-001-16M13-31PA Mighty Mouse plug connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Glenair 80500116M1331PA?
You can click on the BUY or RFQ button to purchase 80500116M1331PA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80500116M1331PA?
You can download the 80500116M1331PA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80500116M1331PA?
Glenair
