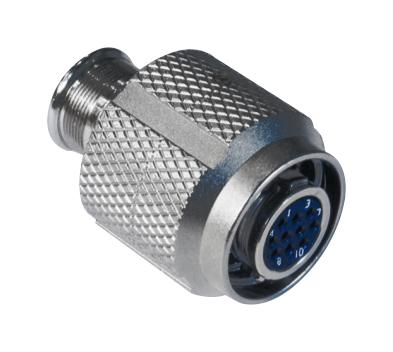

Glenair 80500116M86PA Mighty Mouse Plug Connector
GLENAIR's Series 805 Mighty Mouse connectors are designed for applications requiring a robust and reliable connection, particularly in environments with high vibration. The spring mechanism in the coupling nut ensures a secure mate, eliminating the need for safety wire or torque tools. Constructed with machined aluminum or stainless steel shells, these connectors can accommodate Glenair size 16 or 20HD fiber optic termini. Metal clips secure the termini, and fluorosilicone seals provide protection against water ingress. Available with hex or knurled coupling nuts, the 805 series offers versatility for various cable management needs.
Glenair 80500116M86PA Mighty Mouse Plug Connector Specifications:
- Series: 805 Mighty Mouse
- Shell Style: Plug Connector with Ratcheting Anti-Decoupling Mechanism
- Shell Material and Finish: Aluminum / Electroless Nickel; RoHS Compliant
- Shell Size: 8 through 23
- Contact Type: Pin Connector, less termini
- Shell Key Positions: Normal, Pos. B, Pos. C, Pos. D, Pos. E, Pos. F
- Operating Temperature: -55° C. to +150° C.
- Immersion Test: MIL-STD-810 Method 512, One Meter for One Hour
- EMI Performance: 65 dB Minimum from 1 GHz. to 10 GHz.
- Connector Shell Material: Aluminum or Stainless Steel
- Insulator Material: High grade rigid dielectric
- Seal Material: Fluorosilicone Rubber, Blue
- Contact Retainer Clip Material: Copper alloy, Unplated
Buy the 805-001-16M8-6PA GLENAIR Mighty Mouse Plug Connector | myMectronic
Purchase the GLENAIR 805-001-16M8-6PA Mighty Mouse Plug Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Glenair 80500116M86PA?
You can click on the BUY or RFQ button to purchase 80500116M86PA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 80500116M86PA?
You can download the 80500116M86PA datasheet or visit the Glenair website for support.
Who is the manufacturer of 80500116M86PA?
Glenair
