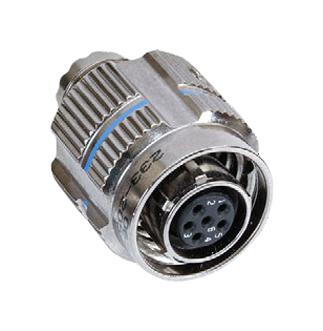

Glenair 806012ME1110SBA Circular Connector
The Ultraminiature 806-012 plug connector is designed for aerospace and industrial applications requiring compact, lightweight, and rugged connections. Made from aluminum with electroless nickel finish and featuring a triple-start stub ACME mating thread, it offers enhanced vibration resistance, de-coupling capability, and high durability in unpressurized aircraft areas. Its high-performance design includes snap-in crimp contacts, operating temperature range of -65°C to +200°C, and multiple wire size options for reliable electrical connections across challenging environments, ensuring optimal performance in vibration, moisture, and temperature extremes.
Glenair 806012ME1110SBA Circular Connector Specifications:
- Shell Material: Aluminum with electroless nickel finish
- Thread Type: Triple-start stub ACME, M14x1.0-6g, M19x1.0-6g, M28x1.0-6g, etc.
- Operating Temperature: -65°C to +200°C (Finish ME, MT, Z1); -65°C to +175°C (Finish NF, ZR)
- Contact Type: P=Pin, Socket
- Wire Sizes: #20HD contacts: 20-24 AWG; #22HD contacts: 22-28 AWG
- Current Rating: #20HD contacts: 7.5 A; #22HD contacts: 5 A
- Dielectric Withstanding Voltage: 1800 Vac for #20HD, 1300 Vac for #22HD
- Vibration Resistance: MIL-DTL-38999M, 609.1 Heff
- Shock Resistance: EIA-364-27, 300g high impact shock
- Durability: Mating cycles: 500
- Shell Style: Aluminum or stainless steel, Mounting options include snap-in or threaded
- Sealing: Ingress protection suitable for aerospace and industrial environments
Buy the Glenair 806-012 Ultraminiature – Reliable Circular Connector for Industrial Applications
Purchase the Glenair 806-012 Ultraminiature circular connector online today to ensure a rugged, lightweight, and high-performance electrical connection. Designed for aerospace and industrial applications, it features durable aluminum construction with electroless nickel finish, triple-start ACME thread, and wide temperature range for extreme conditions. Its snap-in crimp contacts and high mating cycle durability guarantee reliable performance in vibration, moisture, and temperature fluctuations. Convenient online ordering provides fast delivery, enabling you to equip your projects with verified, aerospace-grade connectors to enhance operational reliability.
Order your Glenair Series 806 Ultraminiature 806-012 connector today and secure a high-quality, lightweight, and vibration-resistant connection for demanding applications.
Frequently Asked Questions
Where can I buy Glenair 806012ME1110SBA?
You can click on the BUY or RFQ button to purchase 806012ME1110SBA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 806012ME1110SBA?
You can download the 806012ME1110SBA datasheet or visit the Glenair website for support.
Who is the manufacturer of 806012ME1110SBA?
Glenair
