Glenair 806020ME1110PBA Ultraminiature Circular Connector
The ultraminiature 806-012 plug connectors are designed for aerospace applications, combining size and weight savings with robust construction. Made from aluminum with electroless nickel finish, these connectors feature a rugged ratchet mechanism and triple-start ACME threading for improved de-coupling resistance under vibration. Suitable for unpressurized aircraft areas, they support precise pin and socket configurations, withstand temperatures from -65°C to +200°C depending on finish, and have high dielectric withstand voltage and current ratings. These connectors ensure reliable performance in extreme environments, offering durability, vibration resistance, and lightweight design.
Glenair 806020ME1110PBA Ultraminiature Circular Connector Specifications:
- Shell Material: Aluminum with Electroless Nickel or Zinc-Nickel finish
- Operating Temperature: -65°C to +200°C (depending on finish)
- Contact Type: Pin (P) and Socket
- Wire Range: #20HD contacts 20-24 AWG, #22HD contacts 22-28 AWG
- Dielectric Withstanding Voltage: 1800 Vac for #20HD, 1300 Vac for #22HD
- Current Rating: 7.5 A for #20HD, 5 A for #22HD
- Mating Cycles: 500
- Vibration: MIL-DTL-38999M, 609.6 He, sine and random
- Shock: MIL-S-901 Grade A, 300g
- Humidity: EIA-364-31 Method 4
- Salt Spray: EIA-364-26, 500 hours
- Altitude: up to 75,000 feet
- Connector Construction: Aluminum or stainless steel shells, copper alloy contacts
- Finish: Gold plating on contacts, various shell finishes
- Thread Type: M14x1.0, M19x1.0, M28x1.0, etc., depending on size

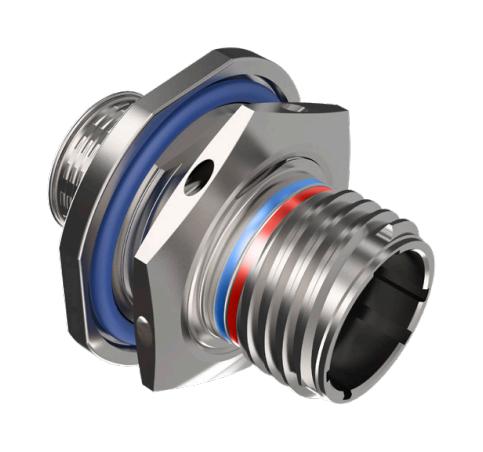

Buy the Buy Glenair Ultraminiature Circular Connectors Part Number 806-012 Online
Discover the exceptional quality and lightweight design of the Glenair Ultraminiature Circular Connector series. Engineered for aerospace, this connector features rugged aluminum shells, triple-start ACME threading for secure mating, and wide temperature range capabilities. With high dielectric withstand voltage, vibration resistance, and durability against harsh environmental factors, this connector guarantees reliable performance in unpressurized aircraft areas. Purchase online today to benefit from fast shipping, competitive pricing, and the assurance of high-performance aerospace-grade connectivity designed for extreme conditions.
Order your Glenair Series 806 Ultraminiature Circular Connector 806-012 today and ensure reliable, lightweight aerospace connectivity in extreme conditions.
Frequently Asked Questions
Where can I buy Glenair 806020ME1110PBA?
You can click on the BUY or RFQ button to purchase 806020ME1110PBA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 806020ME1110PBA?
You can download the 806020ME1110PBA datasheet or visit the Glenair website for support.
Who is the manufacturer of 806020ME1110PBA?
Glenair
