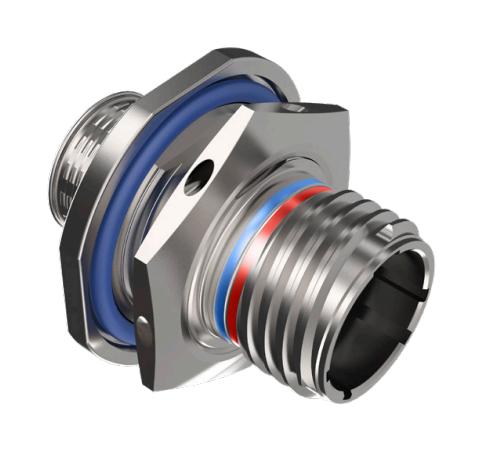

Glenair 806020ME83PMA Ultraminiature Circular Connectors
The UltraMiniature Circular Connector series 806 offers lightweight and compact design ideal for aerospace and military applications. Constructed from high-quality aluminum with electroless nickel plating, these plugs feature a rugged ratchet mechanism and triple-start ACME mating thread for enhanced vibration resistance and reliable connection. Suitable for unpressurized aircraft areas, its specifications include operating temperatures from -65°C to +200°C, current ratings of 7.5 A or 5 A depending on the contact type, and vibration durability up to 609 G. The connectors support multiple wire sizes, provide dielectric withstanding voltage up to 1800 Vac, and are made with precision copper alloy contacts with gold plating for durability.
Glenair 806020ME83PMA Ultraminiature Circular Connectors Specifications:
- Shell Material: Aluminum with Electroless Nickel or Zinc-Nickel finish
- Operating Temperature Range: -65°C to +200°C
- Current Rating: 7.5 A for #20HD contacts, 5 A for #22HD contacts
- Vibration Resistance: MIL-DTL-38999M, 609 G sine, 43.92 Grms random
- Dielectric Withstanding Voltage: 1800 Vac for #20HD, 1300 Vac for #22HD
- Wire Sizes Supported: 20-24 AWG (#20HD), 22-28 AWG (#22HD)
- Mating Durability: 500 cycles
- Shell Sizes: Ranges from 8 to 24 with various thread sizes
- Shock Resistance: MIL-S-901 Grade A, 300g
- Humidity/Corrosion Resistance: EIA-364-31, salt spray 500 hours
- Connectors include snap-in crimp contacts, stainless steel ratchet springs, and high-grade dielectric inserts
Buy the Glenair Series 806 Ultraminiature Circular Connectors: 806-012 Plug
Purchase the Glenair Series 806 806-012 Plug Connectors online today to ensure your aerospace and military projects benefit from high-quality, lightweight, and durable connection solutions. Designed for unpressurized aircraft areas, these connectors provide vibration resistance, wide temperature tolerance, and excellent electrical performance. Order now to enjoy fast shipping and competitive prices on these precision-engineered, corrosion-resistant connectors with high dielectric strength, supporting multiple wire sizes and demanding operating conditions. Secure your critical connection needs easily online today!
Buy Glenair Series 806 UltraMiniature Circular Connectors 806-012 Plug now and experience unmatched reliability and high-performance connection solutions for aerospace and military systems.
Frequently Asked Questions
Where can I buy Glenair 806020ME83PMA?
You can click on the BUY or RFQ button to purchase 806020ME83PMA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 806020ME83PMA?
You can download the 806020ME83PMA datasheet or visit the Glenair website for support.
Who is the manufacturer of 806020ME83PMA?
Glenair
