Glenair 809002 Electrical Socket Contact
The #23 electrical socket contact is designed for versatile wiring and thermocouple applications, accepting #22 to #28 AWG wire, with options for alumel or chromel contacts suitable for temperature ranges from -65°C to +200°C. It features a beryllium copper alloy construction with gold plating, stainless steel nickel socket hood, and is compatible with standard crimping and insertion/extraction tools. This reliable contact ensures efficient electrical connections across various industrial environments, providing high conductivity, durability, and precision for challenging temperature and current conditions.
Glenair 809002 Electrical Socket Contact Specifications:
- Material: Beryllium copper alloy with gold plating over nickel underplate
- Wire Range: #22 to #28 AWG, small bore for #26 to #30 AWG
- Temperature Range: -65°C to +200°C
- Current Rating: 5 Amps maximum
- Voltage Drop: 70 millivolts at 5 Amps and 25°C
- Socket Contact Separation Force: 0.5 ounces for #26 to #30 AWG
- Crimp Tool: 809-015 or AFM8; Positioner: 809-005, 809-057 for small bore
- Insertion/Extraction Tool: 809-088
- Nickel socket hood: passivated stainless steel, uncoated for thermocouple contacts
- Color Bands: Varied, with specific dimensions and passivation standards

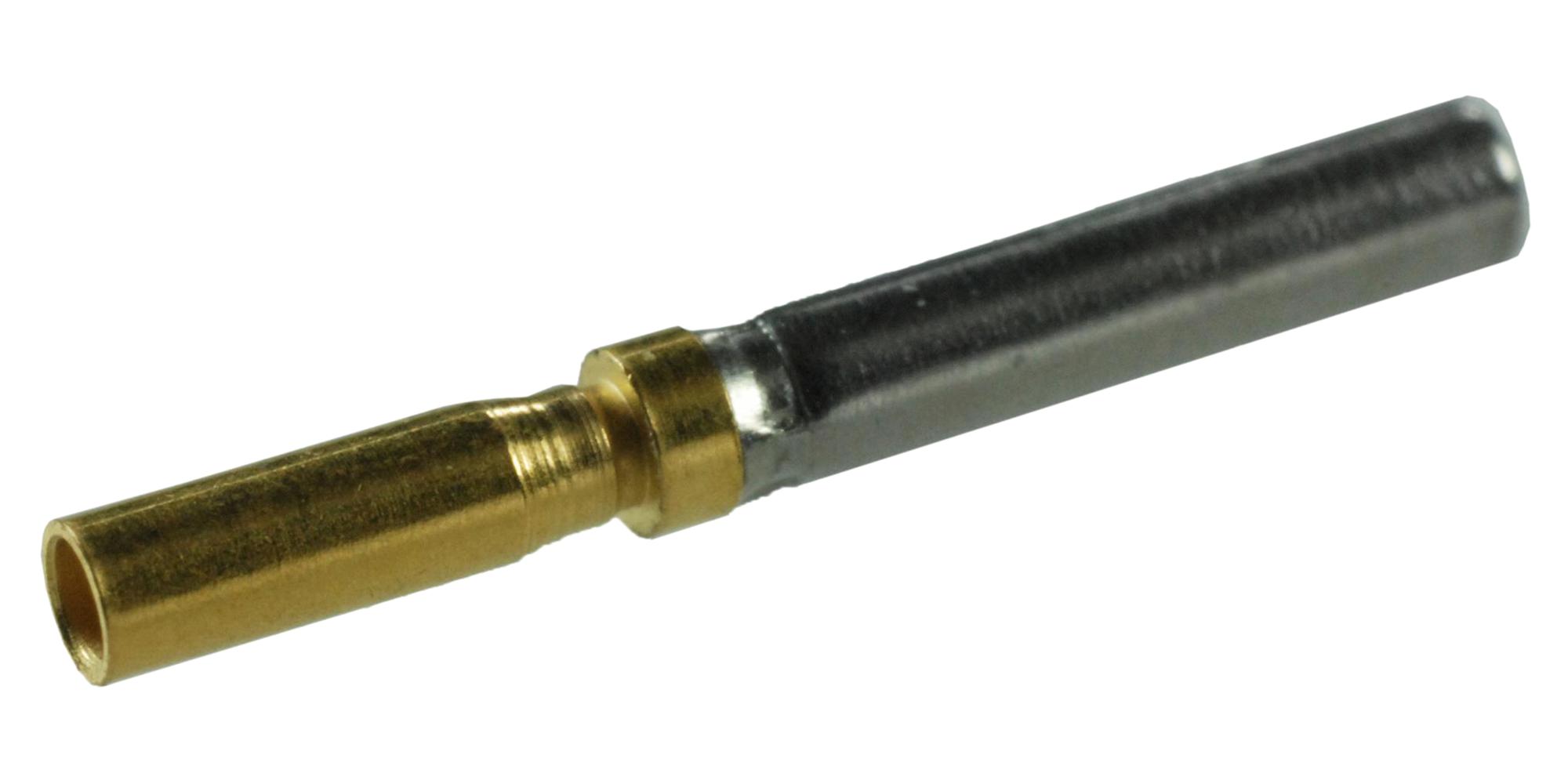

Buy the Glenair 809002 – Reliable Electrical Socket Contact for Industrial Applications
Enhance your electrical connections with the Glenair 809002 socket contact, suitable for #22 to #28 AWG wires, featuring durable beryllium copper alloy with gold plating. Designed for industrial and thermocouple applications, it offers reliable performance across temperatures from -65°C to +200°C. Compatible with standard crimping tools and insertion/extraction devices, this contact guarantees precise, corrosion-resistant terminals. Whether used in automation, manufacturing, or instrumentation, order online now and ensure your projects benefit from superior electrical reliability and easy installation with our trusted socket contacts.
Order your Glenair Series 809002 electrical socket contact today and benefit from high-quality, durable connections suitable for industrial use and thermocouple wiring.
Frequently Asked Questions
Where can I buy Glenair 809002?
You can click on the BUY or RFQ button to purchase 809002 from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 809002?
You can download the 809002 datasheet or visit the Glenair website for support.
Who is the manufacturer of 809002?
Glenair
