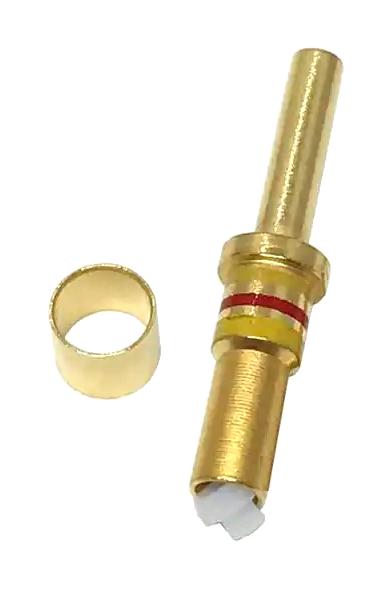

Glenair 809114 RF Coaxial Contact
The #16 and #12 coaxial contacts are designed for RF applications, accepting 50 ohm and 75 ohm coaxial cables. They feature gold-plated copper alloy contacts, with inner contacts rated at 1 amp and outer contacts at 12 amps for #16, and similar ratings for #12. These contacts have an impedance rating up to 700 MHz with a maximum VSWR of 1.5:1, suitable for high-frequency use. They are packaged unassembled with instruction sheets, and their voltage ratings are 800Vac rms at sea level and 250Vac at 50,000 feet. Ideal for RF connectors requiring reliable, high-frequency performance.
Glenair 809114 RF Coaxial Contact Specifications:
- Accepts 50 ohm and 75 ohm coaxial cable
- Inner contact rated at 1 amp, outer contact at 12 amps
- Voltage rating: 800Vac rms sea level, 250Vac at 50,000 feet
- VSWR rating: 1.5:1 maximum up to 700 MHz
- Insulation resistance: 5000 megohms
- Contacts are gold-plated copper alloy
- Approvals: SAE AS39029
- Package: Individually packaged, unassembled with instructions
- Operating temperature and physical dimensions are standard for RF coaxial contacts
Buy the Glenair Series RF Coaxial Contact: 809114
Order Glenair RF coaxial contacts, model 809114, designed for reliable high-frequency RF connections. These gold-plated copper alloy contacts support 50 and 75 ohm cables, rated at 1A and 12A. They ensure excellent impedance control with a maximum VSWR of 1.5:1 up to 700 MHz. With 800Vac rms voltage rating at sea level and 250Vac at 50,000 feet, they are ideal for aerospace, communications, and test equipment requiring precise, durable RF connectivity. Easy to install, packaged individually, and shipped with instructions for straightforward assembly.
Get Glenair 809114 today—built for high-frequency signal integrity and durable RF connections.
