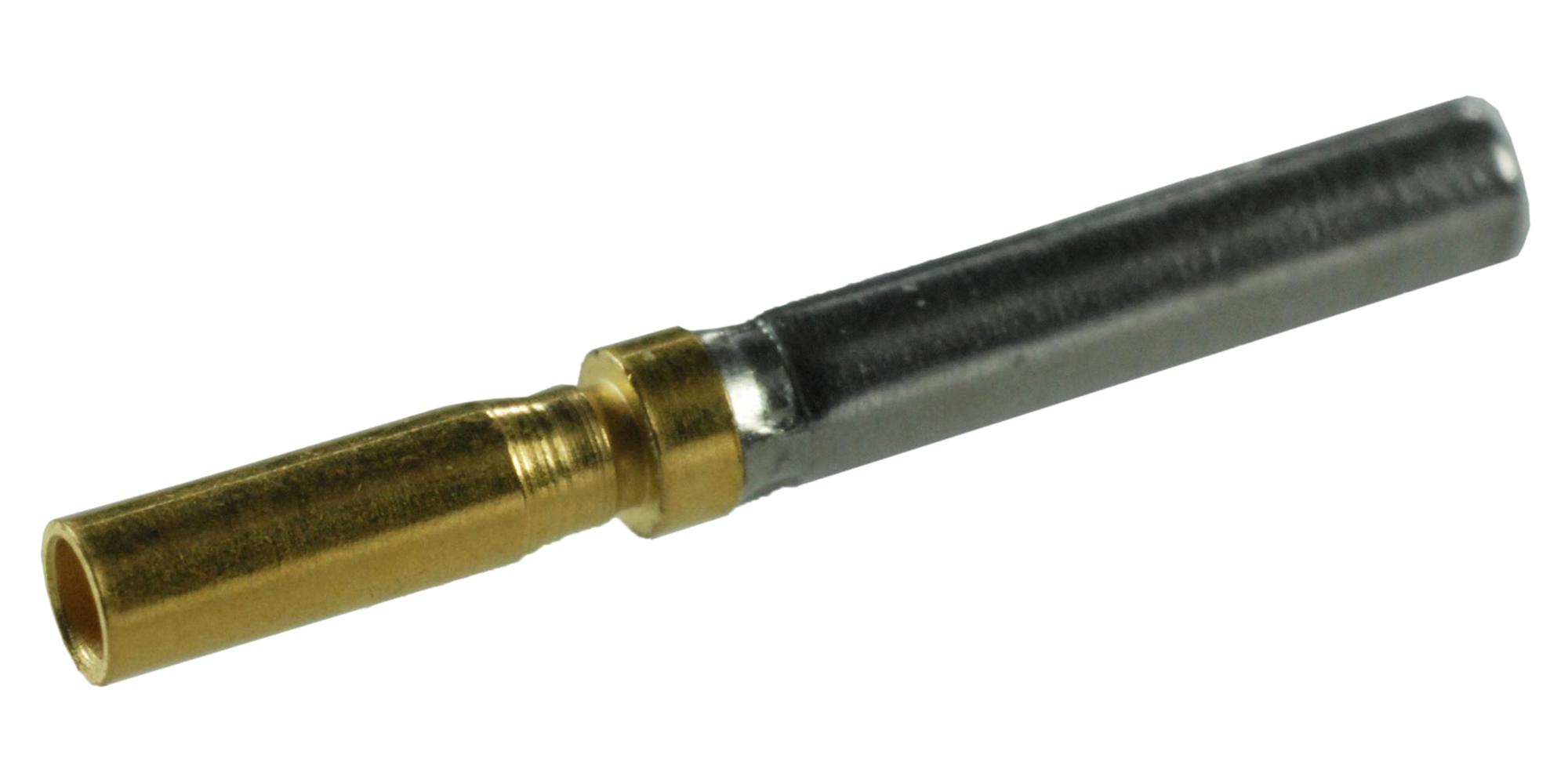

Glenair 809300 Crimp Contacts
The series 80 Mighty Mouse #23 crimp contacts are engineered for reliable connections in electronic and industrial applications, suitable for AWG #20 wire as well as #22 to #28 wires. Designed with a durable beryllium copper alloy contact, gold-plated for excellent conductivity, these contacts feature a large bore option to accommodate #20 to #22 AWG wires, ensuring versatile and secure termination. Compatible with standard M22520 crimpers and insertion tools, they meet rigorous thermal and electrical specifications for high-performance connectivity in demanding environments.
Glenair 809300 Crimp Contacts Specifications:
- Current Rating: 5 Amps maximum
- Voltage Drop at 5 Amps and 25°C: 70 millivolts maximum
- Temperature Range: -65°C to +175°C
- Material: Beryllium copper alloy contact with gold plating, stainless steel socket contact hood
- Crimp Tool: M22520/2-01
- Positioner: 809-301 for large bore contacts
- Dimensions: Pin contact diameter 0.056 inches (1.42 mm), socket hood length 0.208 inches (5.28 mm)
- Insulation: Microinches gold plated, nickel underplate
- Separation Force: 0.5 ounces (14 grams)
- Max Gap: 0.028 inches (0.71 mm)
Buy the Glenair 809300 U–2013 Reliable Crimp Contacts for Industrial Applications
Upgrade your electronic or industrial wiring projects with our high-quality crimp contacts designed for optimal electrical performance. These #23 size contacts are compatible with AWG #20 wire, offering versatile options with large bore versions to accommodate wires from #20 to #28 AWG. Manufactured with durable beryllium copper and gold-plated for excellent conductivity, they ensure secure, reliable connections. Compatible with standard M22520 crimping tools, these contacts meet industry standards for high-temperature, high-current environments, making them ideal for demanding applications. Purchase online today for fast delivery and trusted quality.
Order your Glenair Series 80 809300 crimp contacts today and enhance your electronic wiring with dependable quality and versatile installation options.
Frequently Asked Questions
Where can I buy Glenair 809300?
You can click on the BUY or RFQ button to purchase 809300 from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 809300?
You can download the 809300 datasheet or visit the Glenair website for support.
Who is the manufacturer of 809300?
Glenair
