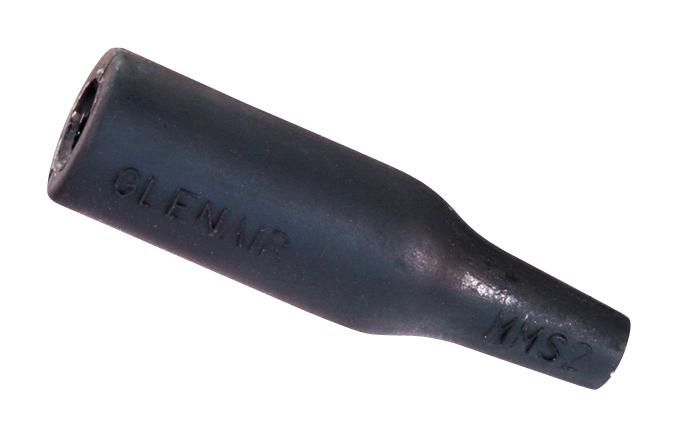

Glenair 809S0604 Shrink Boots for Series 80 Connectors
Circular MIL-spec strain reliefs and adapters with a lipped, shrinkable boot made of elastomer material, designed to provide secure strain relief and environmental sealing for electrical connections. These heat-shrink boots protect cable harnesses from fuel, oil, heat, and environmental factors. Available in high-performance elastomer for extreme temperatures and in low-smoke, zero-halogen flame-retardant polyolefin. Suitable for military, industrial, and aerospace applications, these boots ensure reliable electrical insulation, environmental protection, and strain relief for series 80 connectors, with options for straight or right-angle exit configurations.
Glenair 809S0604 Shrink Boots for Series 80 Connectors Specifications:
- Material: High-performance elastomer or zero-halogen polyolefin
- Temperature Rating: -75°C to +150°C (Type 1 Elastomer), -30°C to +125°C (Type 2 Polyolefin)
- Resistance: Fuels, oils, solvents, heat; Low smoke, zero halogen options available
- Connector Compatibility: Series 80, 801, 802, 803, 804, 805
- Shrinkage: Causes boot to shrink onto connectors and cables for a complete seal
- Design: Lipped, straight or right-angle configurations with integral band platform
- Standards: Meets VG95343, EN62329, SAE AS5258, NAVSEA 5617649
- Dimensions: Sizes range from shell size 1 to 6, with length and diameter specifics for each size
- Colors: Black
Buy the Glenair Series 80 Shrink Boots: 809S0604
Enhance the durability and environmental resilience of your electrical connections with Glenair Series 80 shrink boots. These heat-shrinkable boots utilize high-performance elastomer or low-smoke, zero-halogen polyolefin materials to provide excellent resistance to fuels, oils, heat, and environmental factors. Suitable for harsh military, aerospace, and industrial applications, they ensure secure strain relief and sealing for series 80 connectors in straight or right-angle configurations. Pre-coated with hot-melt adhesive, these boots guarantee a reliable fit and environmental protection, making them the ideal choice for demanding environments.
Order your Glenair Series 80 Shrink Boots 809S0604 today and ensure reliable environmental protection and strain relief for your electrical connections.
Frequently Asked Questions
Where can I buy Glenair 809S0604?
You can click on the BUY or RFQ button to purchase 809S0604 from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 809S0604?
You can download the 809S0604 datasheet or visit the Glenair website for support.
Who is the manufacturer of 809S0604?
Glenair
