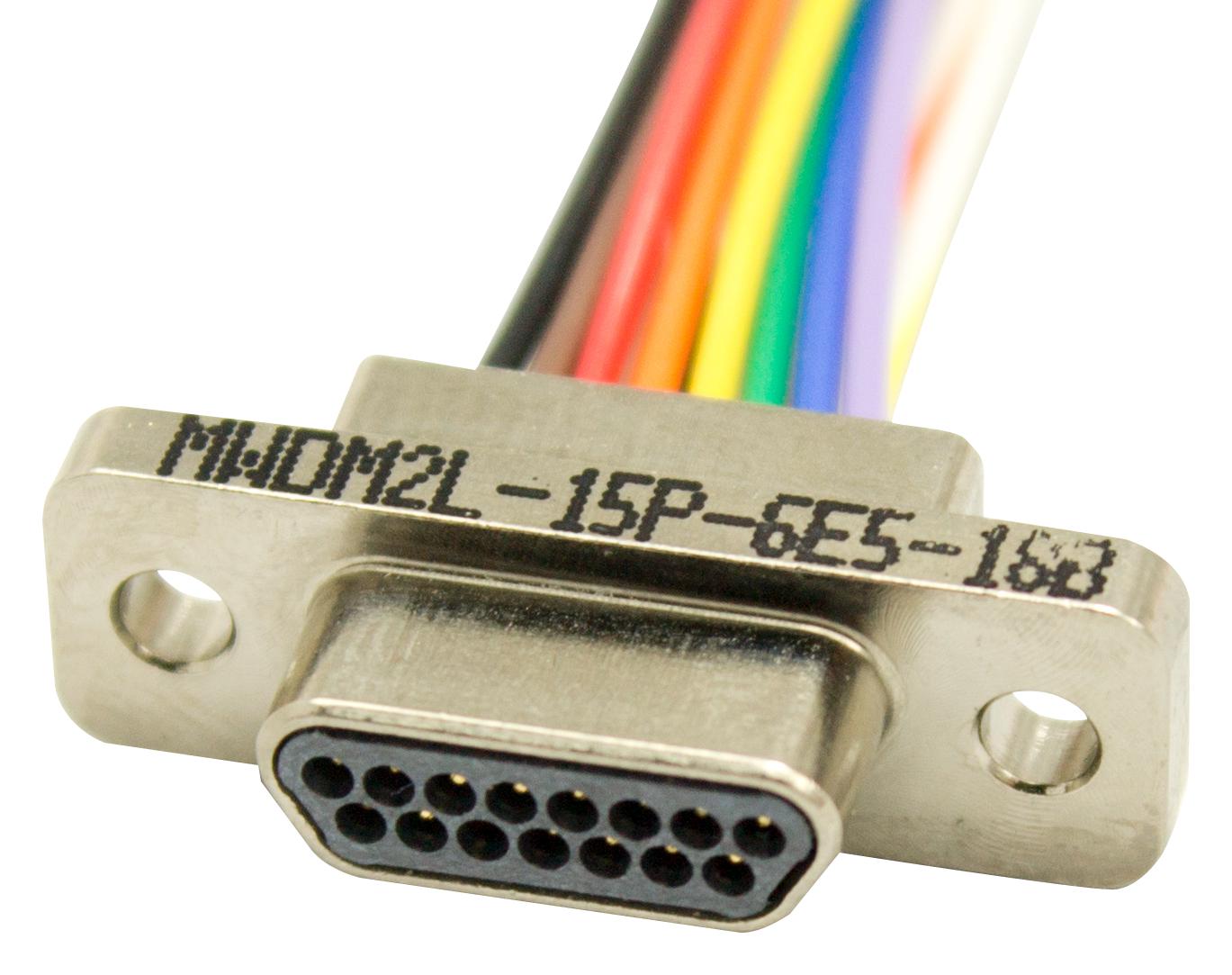

Glenair MWDM2L15P6E5180B Micro-D Connector
The Micro-D MWDM insulated wire connectors are high-performance, mil-spec compliant connectors designed for secure, reliable connections in electronic systems. Featuring gold-plated TwistPin contacts and optional nickel or cadmium-plated shells, these connectors are 100% tested and backpotted for durability. They accommodate various wire gauges, including #24 to #30 AWG, and are available with different shell materials such as aluminum, stainless steel, and passivated finishes. Ideal for aerospace and military applications, they ensure excellent electrical performance and vibration resistance in compact, lightweight designs.
Glenair MWDM2L15P6E5180B Micro-D Connector Specifications:
- Contact Material: Beryllium Copper Gold over Nickel Plating
- Shell Materials: Aluminum, Stainless Steel, Passivated
- Insulation Resistance: 5000 Megohms Minimum
- Contact Resistance: 8 Milliohms Maximum
- Operating Temperature: -55°C to +150°C
- Wire Gage (AWG): #24 to #30
- Wire Lengths: 18 Inches (various options)
- Sealing: Fluorosilicone Rubber, Blue Interface Seal
- Shock & Vibration: 50g., 20g.
- Mating Force: 10 Ounces x (# of Contacts)
- Hardware: 300 Series Stainless Steel
- Liquid Crystal Polymer (LCP) / Polyphenyl Sulfide (PPS) insulation
- Certification: Mil-spec compatible, tested and backpotted
Buy the Glenair Series MWDM Insulated Wire Connectors: MWDM2L15P6E5180B
Purchase the Glenair Series MWDM2L15P6E5180B Micro-D insulated wire connectors online today. These connectors feature rugged construction, gold-plated TwistPin contacts, and mil-spec shell options—ideal for aerospace, military, and high-reliability electronic systems. With a broad range of wire gauges and lengths, they provide excellent electrical performance, vibration resistance, and durability under extreme conditions. Easy to install and tested for compliance, these connectors guarantee secure, long-lasting connections for critical systems. Buy now to enhance your project’s reliability with top-quality Micro-D connectors.
Order your Glenair Series MWDM2L15P6E5180B insulated wire connector today and ensure reliable, secure connections for aerospace and military electronics projects.
Frequently Asked Questions
Where can I buy Glenair MWDM2L15P6E5180B?
You can click on the BUY or RFQ button to purchase MWDM2L15P6E5180B from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part MWDM2L15P6E5180B?
You can download the MWDM2L15P6E5180B datasheet or visit the Glenair website for support.
Who is the manufacturer of MWDM2L15P6E5180B?
Glenair
