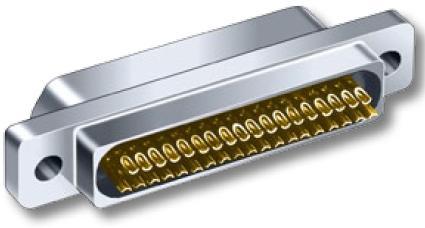

Glenair MWDM2L37SSB Micro-D Connector
The Micro-D MWDM solder cup connector offers robust performance with gold-plated TwistPin contacts compatible with #26 and #24 AWG wire, providing enhanced mechanical strength and reduced voltage drop. Constructed with corrosion-resistant materials such as stainless steel or nickel-plated shells, it features insulation resistance of 5000 Megohms and contact resistance below 8 milliohms. Suitable for high-reliability applications, these connectors withstand temperatures from -55°C to +150°C, shock, and vibration, making them ideal for aerospace, military, and industrial environments. Custom options include plating, shell material, and contact configuration for versatile deployment.
Glenair MWDM2L37SSB Micro-D Connector Specifications:
- Current Rating: 3 AMP
- Connector Shell: Stainless Steel, 300 Series or Nickel-Plated
- Insulation Resistance: 5000 Megohms Minimum
- Contact Resistance: 8 Milliohms Maximum
- Low Level Contact Resistance: 32 Milliohms Maximum
- Interfacial Seal: Fluorosilicone Rubber, Blue
- Pin Contact: Beryllium Copper, Gold over Nickel Plating
- Socket Contact: Copper Alloy, Gold over Nickel Plating
- Operating Temperature: -55°C to +150°C
- Material: Liquid Crystal Polymer (LCP) or PPS
- Shell Finish Options: Cadmium, Nickel, Black Anodize, Passivated, Chem Film
- Performance: Shock and vibration resistant (50 g, 20 g), withstands 600 VAC
- Mating Force: 10 Ounces per contact
- Hardware: 300 Series Stainless Steel
- Sealing: Interfacial fluorosilicone rubber seal
Buy the Buy Glenair Micro-D Part Number MWDM2L37SSB Online
Order Glenair Micro-D solder cup connector MWDM2L37SSB online today and enjoy fast delivery of a high-quality, corrosion-resistant, and temperature-tolerant connector. Designed for aerospace, military, and industrial applications, this connector features gold-plated TwistPin contacts compatible with #24 and #26 AWG wire, ensuring optimal electrical performance and mechanical strength. The durable shells made from stainless steel or nickel-plated materials resist corrosion and withstand harsh environments. Its insulation resistance exceeds 5000 Megohms, supporting reliable operation in extreme temperatures from -55°C to +150°C. Perfect for demanding applications requiring robust, high-performance connectors.
Buy Glenair MWDM2L37SSB now and experience unmatched reliability and performance in high-stress electronic environments.
