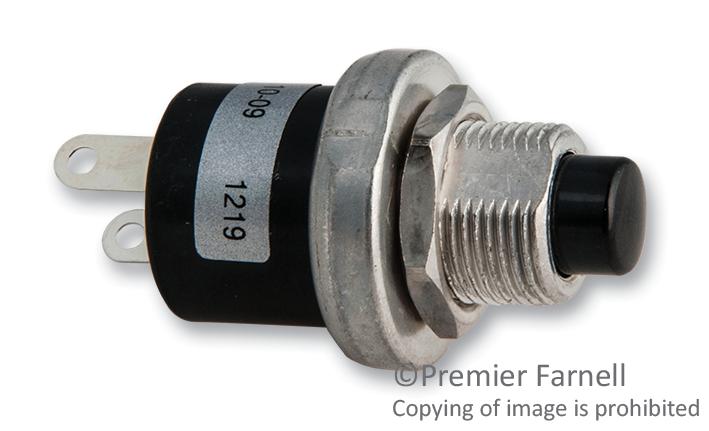

Grayhill 1009 industrial control switch
The 10-09 is a single-pole, single-throw SPST momentary pushbutton switch featuring a black button, normally open contact, solder lug terminations, and robust construction. Made with a zinc chromate-plated mounting bushing, thermoset plastic button and base, and silver-plated contact terminals, it offers reliable performance with a contact resistance of 25 milliohms or less and insulation resistance of at least 1000 Megohms. Operating efficiently in temperatures from -40°C to 85°C, it is ideal for industrial control panels and machinery requiring durable switching solutions.
Grayhill 1009 industrial control switch Specifications:
- Contact Resistance: 25 milliohms or less on a new switch
- Voltage Breakdown: 1,000 Vac between mutually insulated parts
- Insulation Resistance: 1,000 Megohms minimum
- Total Travel: Normally open .140 + .032 inches (3.56 + 0.81 mm), Normally closed .110 + .010/ - .020 inches (2.79 + 0.25/ - 0.51 mm)
- Overtravel: Normally open .020 inches (0.51 mm) minimum
- Pretravel: Normally closed .010 inches (0.25 mm) minimum
- Operating Temperature: -40°C to +85°C
- Materials: Brass, zinc, thermoset plastic, silver-plated beryllium copper, tinned music wire
- ratings: 3 Amps, UL Recognized, rated for 115 Vac or 220 Vac
- Dimensions: Mounting nut brass, zinc plated; mounting bushing zinc, chromate; button plastic; terminals silver-plated; switch size compatible with industrial equipment
- Certification: UL Recognized, UL file number 35289
Buy the Grayhill Series 10 SPST Momentary Pushbutton Switch: 1009
Order Grayhill 1009 online today to ensure your industrial machinery benefits from a high-quality, durable, single-pole, single-throw momentary pushbutton switch. Designed with a black thermoset plastic button, zinc and brass mounting hardware, and silver-plated contact terminals, this switch guarantees reliable operation and long service life. Suitable for demanding environments, it operates efficiently from -40°C to 85°C, providing high contact resistance performance, insulation, and UL recognition. Equip your control panels efficiently and securely with this top-grade switch from Grayhill.
Buy Grayhill 1009 now and experience unmatched reliability and performance for industrial control applications with durable design.
Frequently Asked Questions
Where can I buy Grayhill 1009?
You can click on the BUY or RFQ button to purchase 1009 from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 1009?
You can download the 1009 datasheet or visit the Grayhill website for support.
Who is the manufacturer of 1009?
Grayhill
