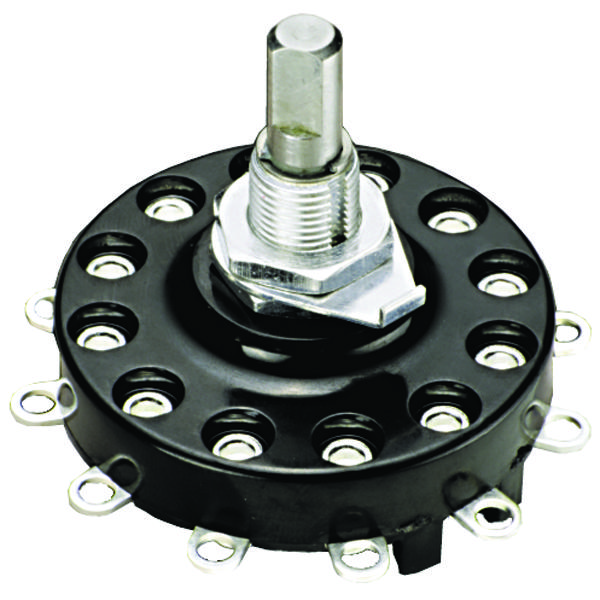

Grayhill 1910110UL 2" Diameter Rotary Switch
The Grayhill 19101-10UL is a robust 2" diameter, single-deck rotary switch designed for a variety of industrial applications. It is UL Recognized and features a rugged construction with a choice of termination options to suit different wiring needs. The switch is rated for 15 Amps at 120 Vac and offers a 30° indexing with non-shorting contacts, ensuring reliable switching performance. It's ideal for applications requiring durable and dependable rotary switching functionality, such as industrial control panels, instrumentation, and automation systems. Accessories like screw terminal adapters and non-turn washers are available to enhance functionality and ease of installation.
Grayhill 1910110UL 2" Diameter Rotary Switch Specifications:
- Rated: UL Recognition: File Number E35289 15 Amps, 120 Vac, non-inductive load. One Amp, 120 Vdc, non-inductive load. Additional Grayhill Rating: 7.5 Amps, 220 Vac, non-inductive load.
- Overload: 50 operations at 125% rated ac load and 150% rated DC load.
- Endurance: 6000 operations at rated load with 900 Vac dielectric strength before and after test.
- Temperature Rise: Not to exceed 30°C when carrying rated ac load after endurance test.
- Contact Resistance: Approximately 10 milliohms (measured at 2 Vdc and approximately 100 mA for new switch).
- Insulation Resistance: Approximately 100,000 Mohms between mutually insulated parts.
- Voltage Breakdown: Approximately 2500 Vac between mutually insulated parts.
- Rotor Contact: Silver alloy
- Stator Contact: Silver alloy
- Shaft: 303 Stainless steel
- Stop Rivet: Steel, cadmium-plated
- Mounting Bushing: Brass, cadmium-plated
- Base and Drive Hub: Heat resistant, electrical grade phenolic
- Detent Mechanism: Brass, silver-plated
- Faston Terminal: Brass, silver-plated
- Solder Terminal: Brass, silver-plated
- Mounting Hardware: One mounting nut[9] /16" across flats,[3] /32" thick and one non-turn washer (see detail) are supplied with each switch.
- Single Pole: 2 to 11 positions plus common
- Indexing: 30°
- Contacts: Non-shorting type
- Rotational Torque: 30 to 75 ounce-inches on a new switch. Approximately 22 ounce-inches after 25,000 cycles of operation.
- Contact Force: Approximately 12 ounces
