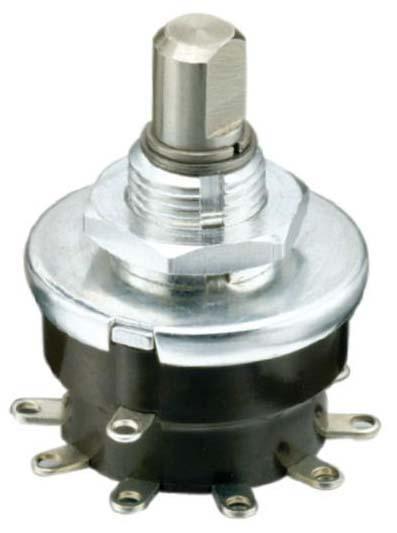

Grayhill 2487810N Rotary Switch
The 24 series Single Deck Rotary Switch features a highly durable construction with virtually limitless configuration options. It is a single-pole, multi-position switch available with 2 to 10 positions. The switch offers options for plastic or steel shafts and can be configured with solder lug or printed circuit terminals. It is available in both shorting and non-shorting contact types; non-shorting PC-mounted switches are limited to the plastic shaft option. The ten-position switch provides continuous rotation with a fixed stop, and models with a metal shaft are available. Positive detents provide tactile feedback during operation, while PC switches have ten base terminals for easy mounting, suitable for diverse industrial environments.
Grayhill 2487810N Rotary Switch Specifications:
- Electrical Rating: 1A at 115V AC resistive, 0.5A at 220V AC resistive, 1/4A at 115V AC inductive, 1/50A at 115V DC inductive, 1/10A at 6-28V DC; carries 10A continuously.
- Contact Resistance: 10 milliohms initial, 20 milliohms after 25,000 cycles.
- Insulation Resistance: Minimum 50,000 Mohms initially.
- Voltage Breakdown: 1,000 Vac, environmental tests confirm 500 Vac or better.
- Life Expectancy: Approximately 100,000 mechanical cycles, lifespan depends on electrical load and environment.
- Materials & Finishes: Base made of melamine; brass, tin/zinc-plated cover, stop washers, and bushing; contacts are silver-plated steel or phosphor bronze; stainless steel or plastic shafts; brass terminals with silver plating.
- Mechanical: Stop strength 12 in-lbs; rotational torque 12 in-oz.
- Environment: Tested for altitude, temperature, salt spray, vibration, shock, humidity, and fungus resistance.
- Mounting: Includes 10 base terminals for PC mount; corrosion-resistant mounting nut.
Buy the Grayhill 2487810N – Reliable Rotary Switch for Industrial Applications
Purchase the Grayhill 2487810N rotary switch online today and ensure your industrial equipment operates with high reliability. This durable, multi-position switch offers precise control with positive detents and a robust construction suitable for demanding environments. Its versatile options include steel or plastic shafts, solder lug or PCB terminals, and configurations with shorting or non-shorting contacts. The switch supports continuous rotation with a fixed stop and is designed for easy mounting with ten base terminals, making it ideal for a wide range of industrial and automation applications. Order now for fast delivery and optimal performance.
Buy Grayhill 2487810N now and experience unmatched reliability and performance in industrial switching solutions.
Frequently Asked Questions
Where can I buy Grayhill 2487810N?
You can click on the BUY or RFQ button to purchase 2487810N from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 2487810N?
You can download the 2487810N datasheet or visit the Grayhill website for support.
Who is the manufacturer of 2487810N?
Grayhill
