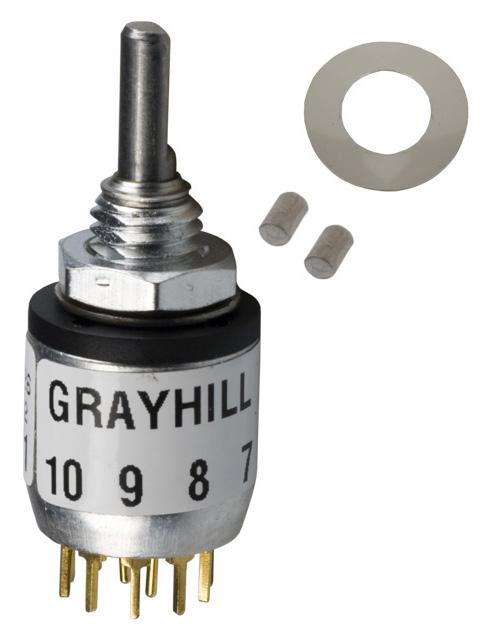

Grayhill 56DP36012AJN Rotary Switch
The 56 series Single Deck Rotary Switch features robust construction with configurable options including shorting or non-shorting contacts, over 25 grams contact force, and a flat contact position at pole one. It offers versatility with screwdriver-slotted shafts, multiple styles, angles of throw, and pole/position options. Meeting MIL-S-3786 standards, it is designed for compact installation with minimal space behind the panel and includes adjustable stop features for quick prototyping. Ideal for industrial, aerospace, military, and defense applications demanding reliable, adaptable switching solutions.
Grayhill 56DP36012AJN Rotary Switch Specifications:
- Mounting Style: Panel mount
- Diameter: 0.5 inches
- Electrical Ratings: Resistive load up to 300 mA at 115V AC or 30V DC
- Contact Resistance: Max 100 milliohms
- Insulation Resistance: Min 10,000 Mohms, initially 60,000 Mohms
- Voltage Breakdown: Min 600 Vac
- Life Expectancy: Based on load, consult manufacturer for specifics
- Contact Force: Over 25 grams
- Stop Strength: Minimum 7.5 in-lbs
- Rotational Torque: 3.5 to 9 oz-in
- Material Housing: Zinc die cast, chromate treated
- Shaft Material: Zinc die cast, chromate treated
- Seals: O-rings at shaft and panel
- Standards: Meets MIL-S-3786 for shock, vibration, thermal shock, salt spray
- Terminals: Brass, gold over silver over nickel plated
- Operation: 30° or 36° throw, multiple poles and positions options
- Accessories: Control knobs, non-turn washer available
Buy the Buy Grayhill Rotary Switch Part Number 56DP36012AJN Online
Order the Grayhill Rotary Switch 56DP36012AJN online today to benefit from high durability, versatile configurations, and MIL-S-3786 compliance. Its robust design features include adjustable stops, multiple contact configurations, and sealing against environmental factors, making it ideal for demanding industrial, aerospace, and defense applications. With a compact profile requiring minimal space behind panels, this switch offers reliable operation with a full circle of terminals, ensuring excellent connection quality. Secure your switch now for dependable performance in critical environments.
Buy Grayhill 56DP36012AJN now and experience unmatched reliability and performance in industrial and military switching solutions.
Frequently Asked Questions
Where can I buy Grayhill 56DP36012AJN?
You can click on the BUY or RFQ button to purchase 56DP36012AJN from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 56DP36012AJN?
You can download the 56DP36012AJN datasheet or visit the Grayhill website for support.
Who is the manufacturer of 56DP36012AJN?
Grayhill
