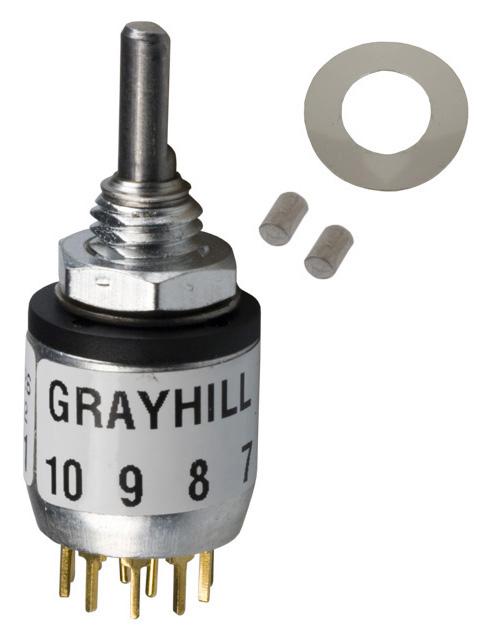

Grayhill 56SDP30011AJN Single Deck Rotary Switch
The Grayhill 56SDP30-01-1-AJN single deck rotary switch is a robust and versatile component designed for a wide range of industrial applications. Its 0.5" diameter and .355" behind-panel depth make it suitable for various panel thicknesses. The switch offers adjustable stop types for immediate prototyping and is built with industrial-grade materials for long-lasting performance. It meets MIL-DTL-3786 specifications for shock, vibration, thermal shock, salt spray, and explosion resistance, ensuring reliability in demanding environments. The switch features a full circle of terminals and is available with screwdriver slotted shaft options.
Grayhill 56SDP30011AJN Single Deck Rotary Switch Specifications:
- Diameter: 0.5"
- Current Rating: 200mA
- Behind Panel Depth: .355"
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 10,000 Mohms minimum
- Voltage Breakdown: 600 Vac minimum
- Life Expectancy: As determined from load-life curve
- Contact Carry Rating: 6 amperes continuously
- Contact Force: Over 25 grams
- Shaft Flat Orientation: Flat opposite contacting position of pole number one
- Stop Strength: 7.5 lb-in. minimum
- Rotational Torque: 3.5 to 9 oz-in
- Housing Material: Zinc die cast, tin zinc plated
- Shaft Material: Stainless steel
- Contact Spring Material: Stainless steel
- Rotor Contact Material: Brass or zinc alloy, silver over nickel plate
- Common Ring Material: Brass, gold over silver over nickel plate
- Terminal Material: Brass, gold over silver over nickel plate
- Switch Base Material: Molded thermoset plastic
- MIL Specifications: Meets MIL-DTL-3786
