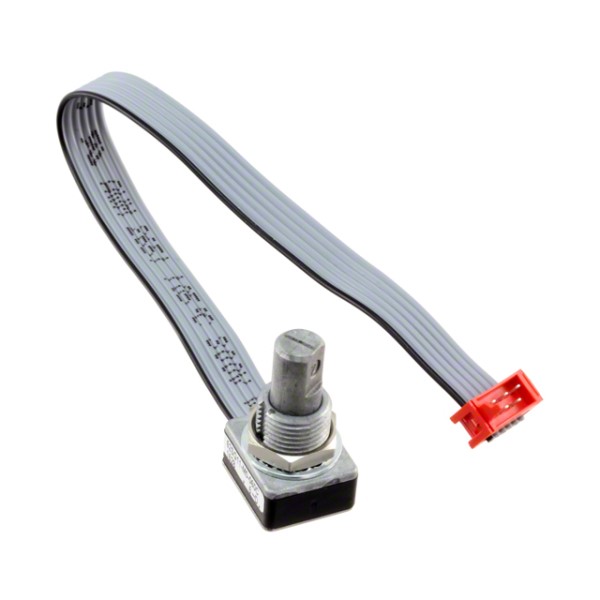

Grayhill 62SG11M5060C Compact Rotary Encoder
The Grayhill 62SG series rotary encoder provides a compact and cost-effective solution for position feedback in a wide range of industrial applications. Featuring quadrature coding and an optional integrated pushbutton, this encoder delivers precise and reliable performance. Its small profile allows for easy integration into space-constrained designs, while its robust construction ensures durability in demanding environments. Common applications include automotive systems, patient monitoring equipment, analyzers, and professional audio/video editing equipment. The 62SG11-M5-060C model offers a 11.25° angle of throw, medium torque, and a 6.00” cable length with a connector.
Grayhill 62SG11M5060C Compact Rotary Encoder Specifications:
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Humidity: 96 hours@90-95% humidity@40°C
- Mechanical Vibration: Harmonic motion with amplitude of 15g within a varied frequency of 10 to 2000 Hz for 12 hours
- Mechanical Shock: 100g for 6 ms half-sine wave with a velocity change of 12.3 ft/s; 100g for 6 ms sawtooth wave with a velocity change of 9.7 ft/s
- Operating Voltage: 5.00 ± 0.25 Vdc
- Supply Current: 30 mA maximum
- Logic High: VOH = 3.0 Vdc MIN at VCC = 4.75 Vdc with 10 kΩ PULL-UP RESISTOR
- Logic Low: VOL = 1.0 Vdc MAX at VCC = 5.25 Vdc with 10 kΩ PULL-UP RESISTOR
- Output: Open Collector Phototransistor
- Optical Rise Time: 30ms maximum
- Optical Fall Time: 30ms maximum
- Mechanical Life: 1,000,000 cycles
- Mounting Torque: 15in-lbs. maximum
- Shaft Pushout Force: 45 lbs. minimum
- Terminal Strength: 15 lbs. cable pull out force minimum
- Solderability: 95% free of pin holes & voids
- Pushbutton Rating: 30 mA @ 5 Vdc
- Pushbutton Contact Resistance: <10 Ω
- Pushbutton Actuation Force: 550 ± 200 grams (5); 1050 ± 200 grams (9)
- Pushbutton Shaft Travel: .020 ± .008 inch
- Bushing Material: Zamak 2
- Shaft Material: Zamak 2
- Detent Ball Material: 302 Stainless Steel
- Detent Spring Material: Music Wire
- Retaining Ring Material: 301 Stainless Steel
- Code Housing Material: Nylon 6/6 25% glass reinforced
- Light Pipe Material: Lexan, GE
- Code Rotor Material: Delrin 100
- Pushbutton Actuator Material: Glass Reinforced nylon 6/6
- Pushbutton Dome Material: 301 Stainless Steel
- Printed Circuit Board Material: NEMA Grade FR4
- Infrared Emitting Diode Material: Gallium Aluminum Arsenide
- Phototransistor Diode Material: NPN Silicon
- Resistor Material: Metal oxide on ceramic substrate
- Spacer Material: Pet plastic
- Backplate Material: 302 Stainless Steel
- Label Material: TT406 thermal transfer cast film
- Solder Material: 96.5% tin / 3% silver / 0.5% copper
- Hex Nut Material: Brass, Plated with nickel
- Lockwasher Material: Zinc Plated Spring Steel with Clear Trivalent Chromate Finish
- Cable Material: Copper Stranded with topcoat in PVC insulation
- Connector Material: PA4.6 with tin/ nickel plated phosphor bronze
